H Beam Bending Machine

Model No WGJ-250
Steel size 200#H beam
Oil cylinder working speed 1-13mm/s
Power 12Kw/380V/3phase
Main driving wheel rotating speed 7r/min
Min bending diameter 2M
Hydraulic system pressure 20Mpa
Hydraulic oil 46#/68# antiwear hydraulic oil
Dimension 2500*1500*1200mm
Weight 2380kg
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • Technical Data
  • Bending details
  • Application
  • FAQ

H beam bending machine can bend H beam vertical bending H beam flat bending,T shape steel beam bending,C channel steel bending in one combined mold.No need to change mold for different shape.

Sinch with 20 years bending experience,we can suggest you what can do or what can not do.In which condition the beam will be deformed.

H beam in vertical bending need to make 2 curves on 3 rollers to make sure the beam can fixed into rollers tightly and properly.

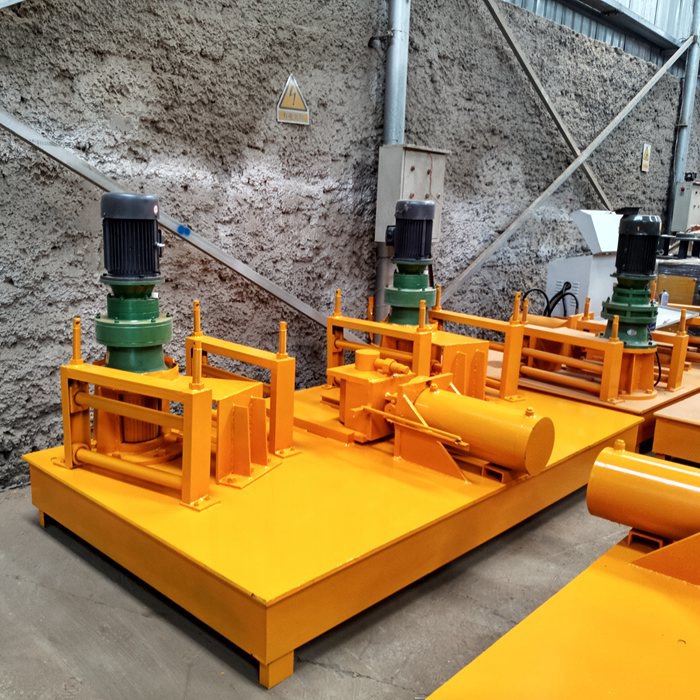

H beam bending machine

Standard H beam bending machine and Customized 44mm beam



H beam bending machine testing video

Technical Data



Model No WGJ-250 H beam bending machine
Steel size 200 #H beam/U shaped steel
channel beam/angle steel
track beam/square steel
steel pipe/rail beam
Oil cylinder working speed 1-13mm/s
Power 12Kw
Voltage 380V
Main driving wheel rotating speed 7r/min
Min bending diameter 2M
Hydraulic system pressure 20Mpa
Hydraulic oil 68# antiwear hydraulic oil( winter)
46#antiwear hydraulic oil (summer)
Dimension 2500*1500*1200mm
Weight 2380kg

Bending details

H beam bending machine2
H beam flat bending rollers VS flat+vertical combined bending rollers
H beam bending machine 3

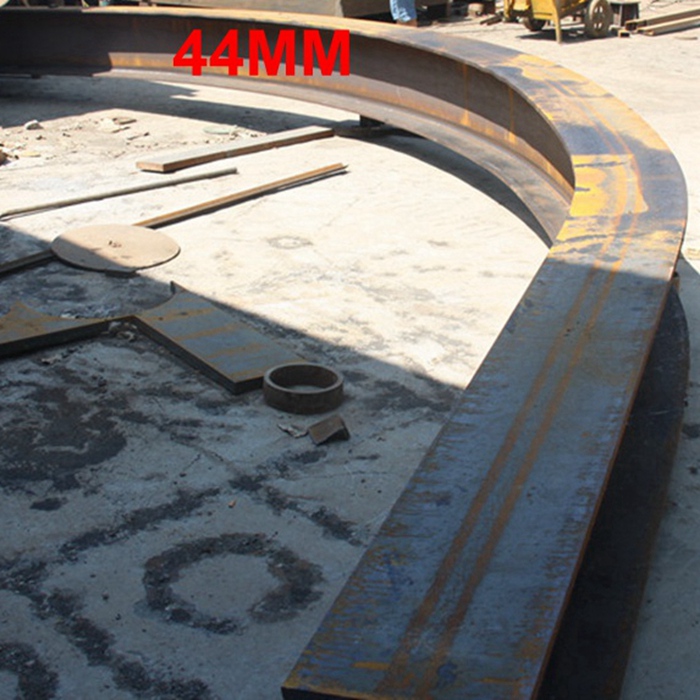

44mm*30mm H beam vertical arch bending effect,for ship

Application

H beam bending application

H beam application

H beam application

H beam application

FAQ

1. Lead time:7-10 days after received payment.

2. Payment terms: T/T, L/C at sight,Paypal,west union,credit card.

3. Delivery: Normally by sea.

4. Packing: plywood case or load into container directly.
