Diesel Shotcrete Machine

Model No KPZ-3D KPZ-5D KPZ-9D
Output 2-3m3/h 4.5-5.5m3/h 7.5-8.5m3/h
Max convey distance dry200m/wet30m dry200m/wet30m Dry100m/wet30m
Max convey height 20m 20m 15m
Water cement ratio <0.4 <0.4 <0.35
Max aggregate size 15mm 15mm 20mm
Hose inner diameter 51mm 51mm 57mm
Air pressure 0.2-0.6Mpa 0.2-0.6Mpa 0.2-0.6Mpa
Air consumption 5-6m3/h 7-8m3/h 9-10m3/h
Motor power 6.9KW(10HP) 13KW(18HP) 16.2KW(22HP)
Dimension 2200*780*1020mm 2400*850*1200mm 2650*850*1350mm
Weight 600kg 880KG 950KG
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Diesel Shotcrete Machine is also one kind of concrete spray machine, just becuase it is using diesel engine for dry shotcrete or wet shotcrete spray work.

Diesel concrete spraying machine is suitable for project can not get electric power supply.It is commonly used together diesel air compressor.

Diesel type shotcrete pump including 5m3/hour,7m3/hour and 9m3/hour. Dry mix or wet mix all workable .

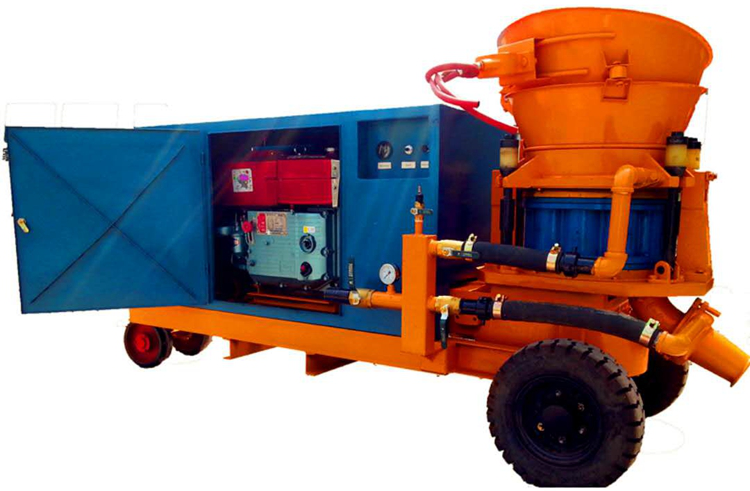

Diesel shotcrete machine

Diesel shotcrete machine

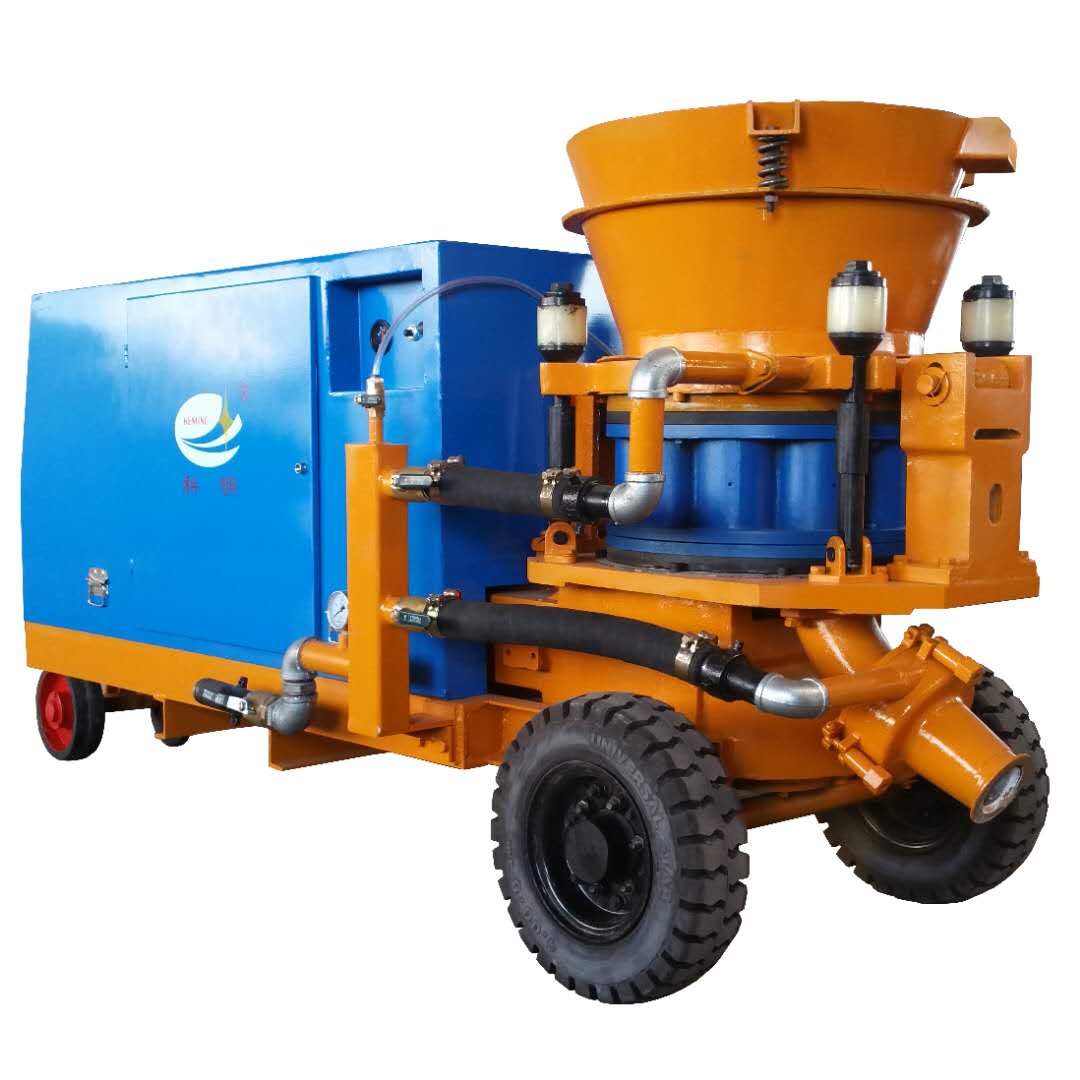

Diesel type concrete spray machine

Diesel type concrete spray machine

Technical Data:

Model No KPZ-3D KPZ-5D KPZ-9D
Output 2-3m3/h 4.5-5.5m3/h 7.5-8.5m3/h
Max convey distance dry200m/wet30m dry200m/wet30m Dry100m/wet30m
Max convey height 20m 20m 15m
Water cement ratio <0.4 <0.4 <0.35
Max aggregate size 15mm 15mm 20mm
Hose inner diameter 51mm 51mm 57mm
Air pressure 0.2-0.6Mpa 0.2-0.6Mpa 0.2-0.6Mpa
Air consumption 5-6m3/h 7-8m3/h 9-10m3/h
Motor power 6.9KW(10HP) 13KW(18HP) 16.2KW(22HP)
Dimension 2200*780*1020mm 2400*850*1200mm 2650*850*1350mm
Weight 600kg 880kg 950kg

Free accessories:

shotcrete spare parts

Shotcrete spare parts



Wearing parts you may need:

Shotcrete machine wearing parts

Shotcrete machine wearing parts

shotcrete machine spare parts

Shotcrete machine wearing parts



 Packing details of diesel type concrete spray machine :

shotcrete machine packing

shotcrete machine packing

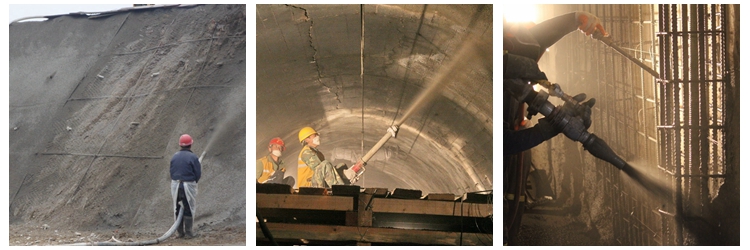

 Application :

shotcrete application

Shotcrete application
