Adjustable Canal Paver-HMJ5000

Model No.:	HMJ-5000	Moving speed:	0.4~4m /min
Engine power:	22.5kw	Steering control:	Steering sensor
Canal size:	Max width 5m /Max height 2m	Dimension:	5200* 2200*2200mm
Mold:	Replace according to your canal size.	Weight:	3000kg

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

PRODUCT DETAIL

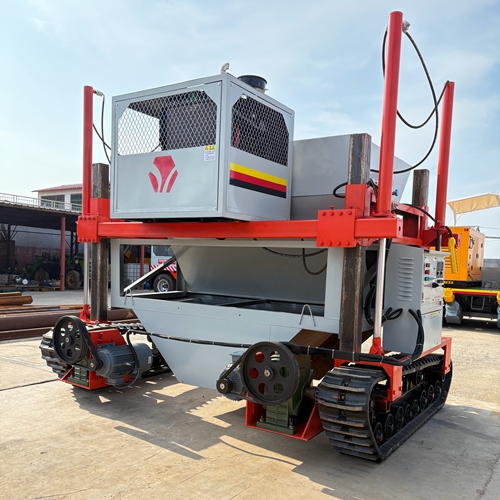

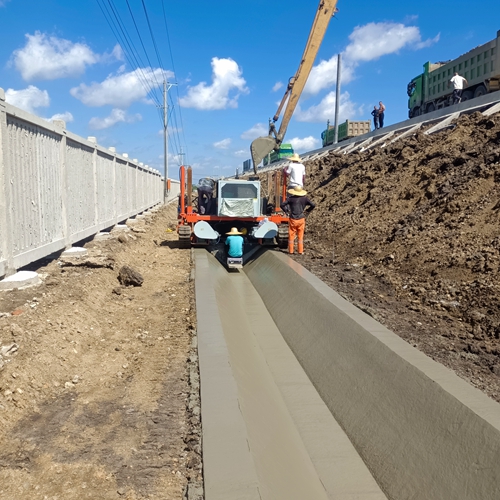

HMJ5000 adjustable canal paver can pave maximum 5m wide and 2m high canals. Automatically steering control and speed control.

Crawer canal paver working video max 5m adjustable

Advantages of KB5000 Canal Slipform Paver:

① Automatic steering control, resulting in smooth concrete lining.
② Canal size can be adjusted in 5m wide and 2m height.
③ The mold can be lifted above the working surface, allowing the machine to move independently.
④ The working speed can be continuously adjusted.
⑤ It can also pave concrete roads within 5 meters.
⑥ Using vibrating rod to compacts the concrete, paving faster, higher density, and a smoother finish.

Differences between Adjustable Canal Paver and One-size Canal Paver:

① One machine can only produce one size canal.
② The mold cannot be hydraulically lifted.
③ Slow working speed.
④ Need to use tracks to control direction, taking longer time and more workers.
