Slipform Concrete Kerb Machine HMJ1000
- PRODUCT DETAIL
Slipform Concrete Kerb Machine

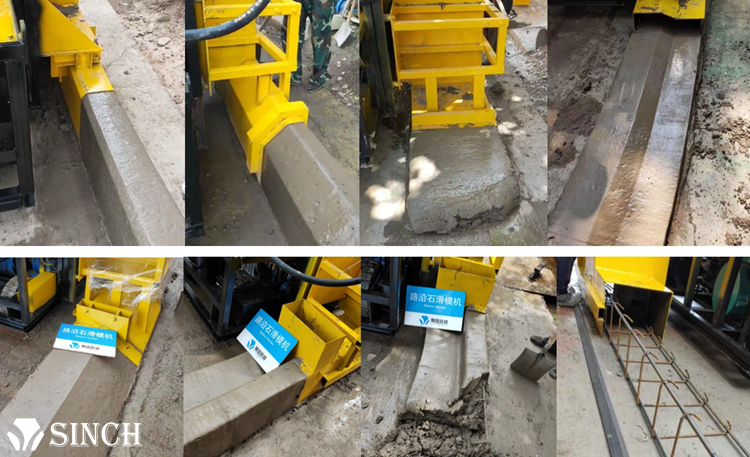

Slipform concrete kerb machine is bigger than extruding type curb machine.It is using vibrating rods and slip form molds to make concrete into curbs. Curb size can be customized from 100mm to 900mm.It is also called road curb machine, concrete kerb paver,kerb paving machine,curb maker,etc.

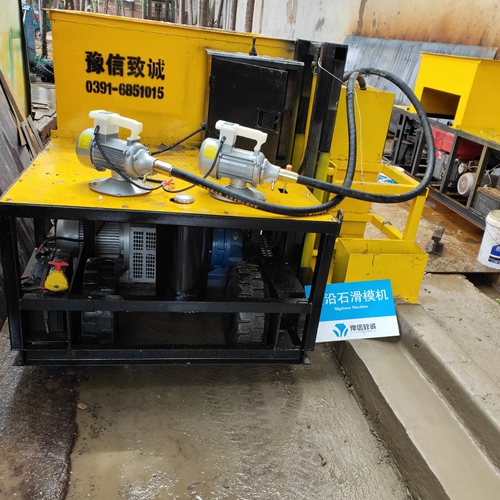

HMJ-1000 max curb size 900mm wide,15KW power ,with 2 vibrating rods.1 or 2 sensor options. The mold part can be adjusted up and down to fit different working levels.
Specifications of curb slipform machine:
| Model No. | HJM-1000 |
| Diesel power | 20HP |
| Max width | 900mm |
| Max height | 350mm |
| Moving speed | 1~15m/min |
| Paving speed | 1~3.5m/min |
| Steering sensor | 1pcs |
| Level sensor | Options (1pcs) |
| Hopper | 0.4m³ |
| Dimesion | 2900*1400*1400mm |
| Weight | 1800kg |
Features of concrete kerb machine:
1.Mold size customized.Mold part can be replaced easily.
2.Working speed adjustable.
3. Level sensor and steering sensor options.You can choose to have 1 steering sensor or both steer and level sensor.
4.Mold part can move up and down freely according to your working conditions.
Other Curb Machine Options：

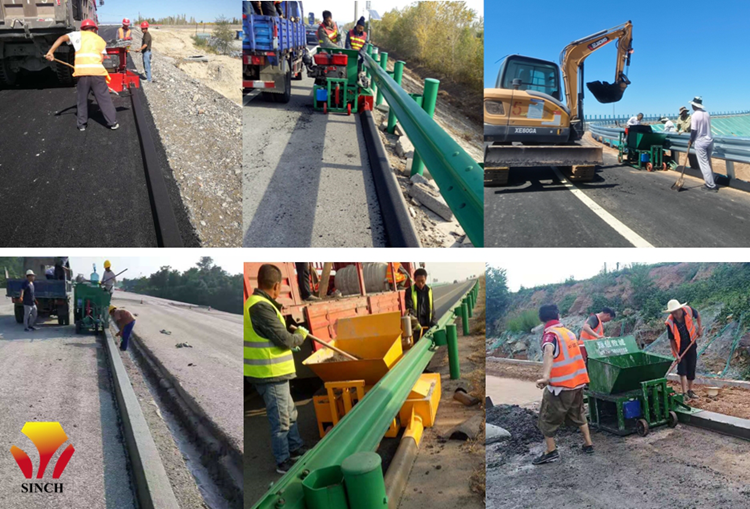

As slipform curb machine can only product concrete curbs, if you need machine to do asphalt road curbs, we have LSD-250/300 extruding type asphalt curb making machine.See below picture. Mold size customized.
