Wet Shotcrete Machine

Product name: Wet shotcrete machine/wet concrete spray machine
Model Number: GSP-6 GSP-7
Applicable materials : Dry or wet concrete Dry or wet concrete
Flow(m³/h): 5~6m3/h 6~7m3/h
Air Pressure: 0.4~0.6MPa 0.6~0.8MPa
Power: 5.5Kw/380V/3phase/50hz 7.5Kw/380V/3phase/50hz
Conveydistance/height: 30m/20m 30m/20m
Maximum aggregate size: 15mm 15mm
Outlet diameter: 51mm 51mm
Weight: 850KG 900KG
Dimension: 1800*900*1250mm 2000*900*1300mm
Air consumption: 10-15m3/min 10-15m3/min
Accelerator feeding capacity: 0-108L/H 0-108L/H
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Wet shocrete machine or wet concrete spray machine is a different type from dry shotcrete machine or dry concrete spray machine. The applicable material can be dry mixed concrete or wet miexed concrete.(cement+sand+stone under 15mm).The power type can be electric power,diesel power or air motor power.Depends on your working site situation.

The most popular type is electric motor type.Model number has: GSP-6 and GSP-7. pictures as below.

wet shotcrete machine

GSP-7 wet shotcrete machine (electric motor)

Working principle:

1. Put wet mixed concrete (cement+sand+stone+water) to the hopper,the blades stirring help the concrete drop into rotor body(10 material cavity),rotor body rotating + air blow

2. Let the concrete blow into elbow then blow out to shotcrete hose.

3. In the mean time,put liquid accelerator mixed with concrete.

3. Air blows the concrete to shotcrete nozzle,then spray onto walls or other surfaces.

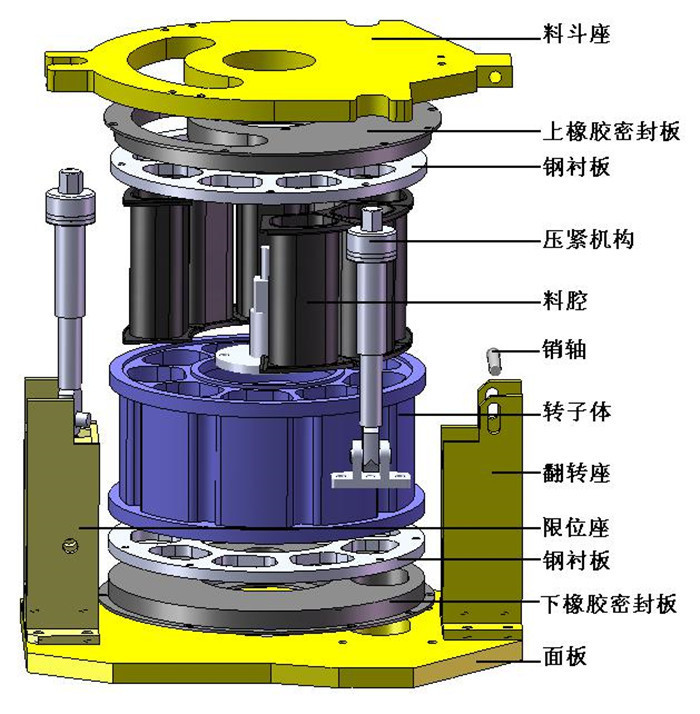

shotcrete machine structure

Shotcrete machine structure

Technical Data:

Product name: Wet shotcrete machine/wet concrete spray machine
Model Number: GSP-6 GSP-7
Applicable materials : Dry or wet concrete Dry or wet concrete
Flow(m³/h): 5~6m3/h 6~7m3/h
Air Pressure: 0.4~0.6MPa 0.6~0.8MPa
Power: 5.5Kw/380V/3phase/50hz 7.5Kw/380V/3phase/50hz
Conveydistance/height: 30m/20m 30m/20m
Maximum aggregate size: 15mm 15mm
Outlet diameter: 51mm 51mm
Weight: 850KG 900KG
Dimension: 1800*900*1250mm 2000*900*1300mm
Air consumption: 10-15m3/min 10-15m3/min
Accelerator feeding capacity: 0-108L/H 0-108L/H

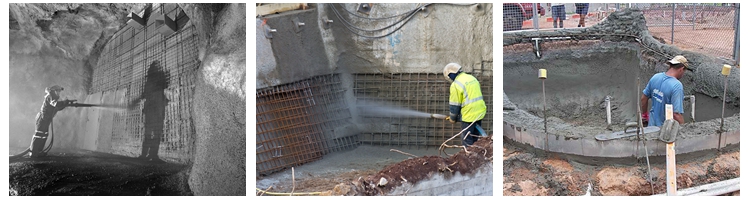

Application of wet shotcrete pump:

shotcrete pump application

Shotcrete machine using in tunnels,slope and pools



Features of wet concrete sprayer:

1.No blocking

2.Dustless.

3.Low rebound rate.

4.Components durable.

5.Dry and wet shotcrete both workable.

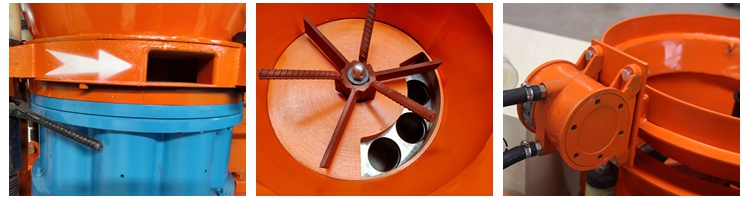

Details:

concrete shotcrete machine details

Rotor body,feeding hopper and vibrator

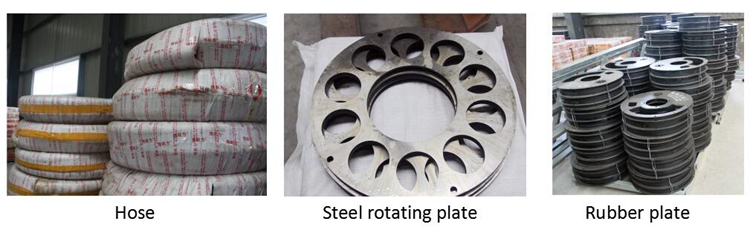

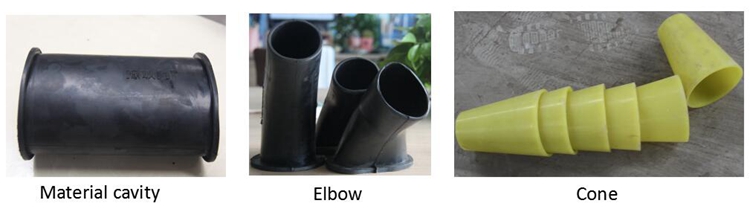

Wearing parts you may need :

shotcrete spare parts

shotcrete wearing parts

shotcrete wearing parts

shotcrete wearing parts

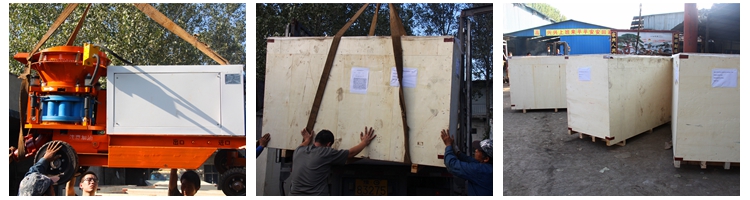

Packing and loading:

wet shotcrete machine packing

Loading and packing to Nepal



Terms and delivery:

1.Lead time:3-7 days after payment, bulk order check with Monica.

2.Price term:EXW,FOB,CFR,CIF.

3.Payment term:T/T, irrevocable L/C at sight,Trade assurance.

4.Delivery: by sea or air.

5.Packing:Wooden case+Shipping mark.

6.Warranty:12 months without wearing parts.
