U shape mining steel beam bending machine



Model no WGJ-36U
Type Hydraulic/CNC
Steel size 36U29U25U
Oil cylinder working speed 1-13mm/s
Power 12Kw/380V
Main driving  wheel rotating speed 7r/min
Min bending diameter 2M
Hydraulic system pressure 16Mpa
Hydraulic oil 68# ( winter) 46#(summer)
Dimension 2.5m×1.5m×1.2m
Weight 2380kg

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

U shape mining steel beam bending machine is mainly used to bend U shape steel into arch shape for tunnel support or mining support.36U\29U\25U all workable by switching mold.

As U shape in special shape, it would be better if you can provide drawings before production.

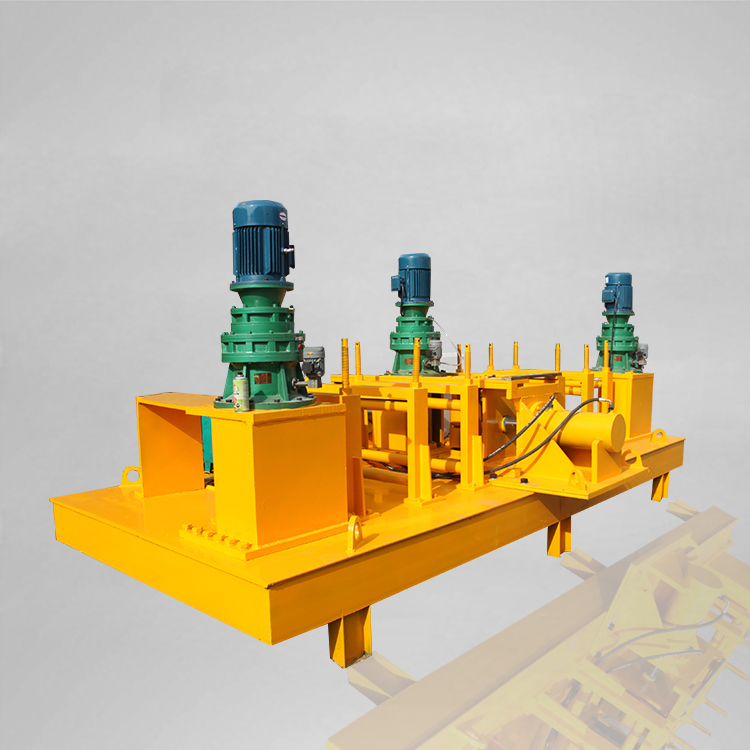

U beam bending machine

U shape steel bender,using different mold.

The 3 moving rollers can be customized according to your beam size and shape. When you replace it , please remove the 3 motors and 3 reducers first, remove the steel cover. Then replace new molds onto 3 rollers.

Before bending beams, please test the motor and hydraulic cyliner too see if they are working properly.

Technical Parameter:

Model no WGJ-36U
Type Hydraulic/CNC
Steel size 36U\29U\25U
Oil cylinder working speed 1-13mm/s
Power 12Kw/380V
Main driving  wheel rotating speed 7r/min
Min bending diameter 2M
Hydraulic system pressure 16Mpa
Hydraulic oil 68# ( winter) 46#(summer)
Dimension 2.5m×1.5m×1.2m
Weight 2380kg

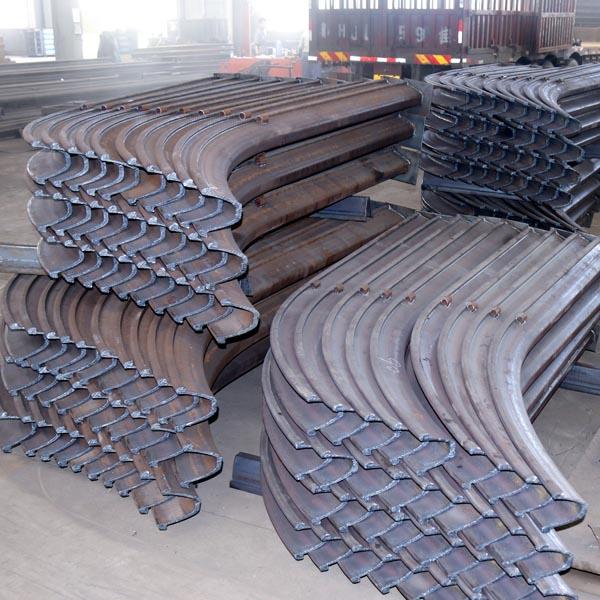

U beam bending effect:

U beam bending effect

U beam bending effect

U beam application

U beam application

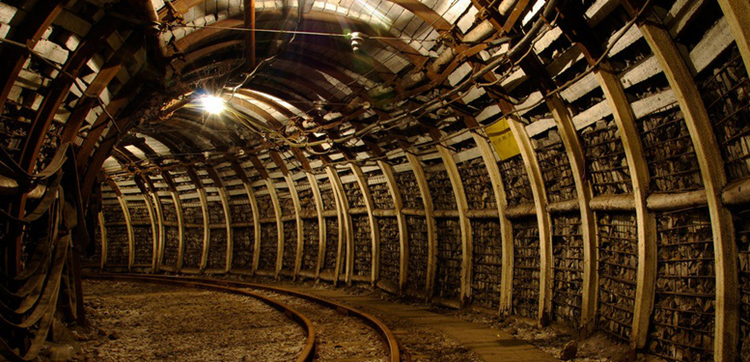

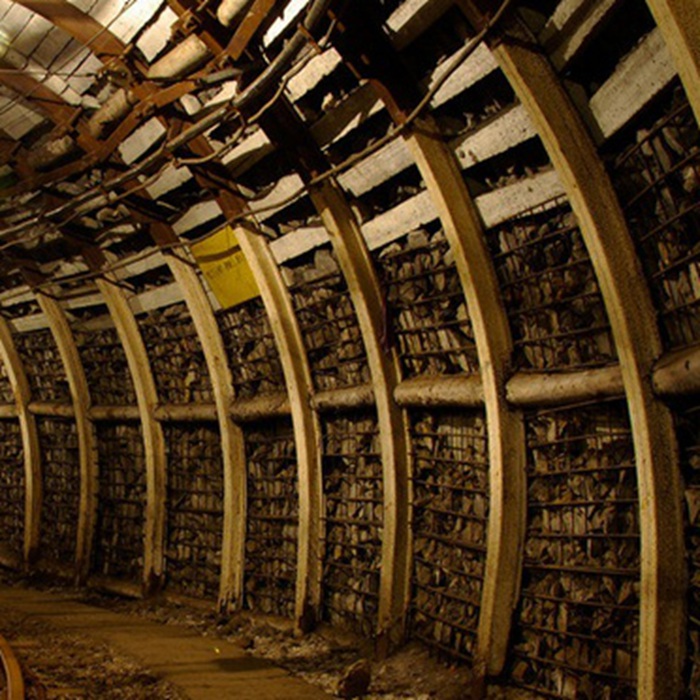

U beam in tunnel

U beam in tunnel

U beam bending machine cold bending machine is working accurately by hydraulic operating system. All the material was finished in one time,high efficiency,easy to use. The machine is widely used in tunnel, subway, hydro power station, underground cavern projects.
