U Beam Rolling Bending Machine

Product U beam steel bending machine
Applicable material 25U/29U/36U
U beam radius ≥1100mm
Bending speed 0-4.3m/min
Temperature 0-400degree
Oil temperature ≦650degree
Main pump station 30KW/120L/min/16mpa
Vice pump station 18.5KW/48L/min/20mpa
Lubrication pump station 0.55KW/3.7L/min/2mpa
Dimention 3800*3200*1450 mm
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • Techcinal Data
  • Process
  • Application

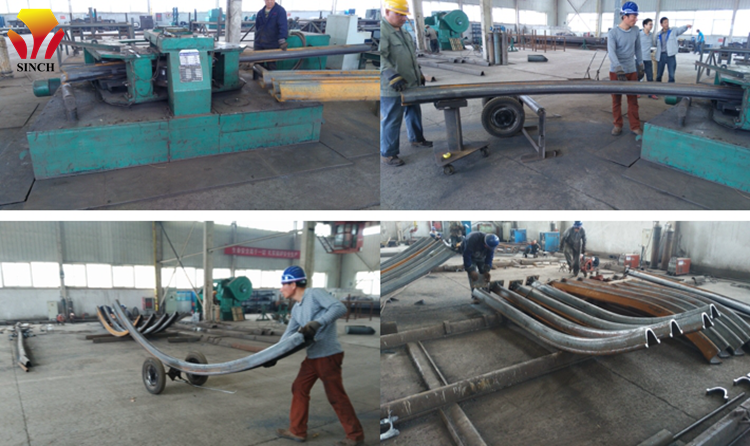

U beam roller,U beam bending machine

U beam rolling forming machine

U beam steel rolling bending machine is a machine combined with rolling and forming function together to bending 25U/29U/36U beam into arc shape. Setting radius by CNC program.High precision and save time.

Features:

1.High production efficiency,suitable for mass production. Using 4 rollers pressing,rollers rotation drive U beam,to achieve a combination of linear and curved motion. One time feeding,one time finish.

2.Production of high precision,bending radius can be adjusted freely.Completely solve the molding machine by manual operation experience and skills to determine the radius of curvature and chord length of this problem.

3.Low labor intensity.

4.Easy operation.

5.Suitable for forming high-strength steel.

6.Save cost and save time.no need to change mold, one machine can produce 3 size U beam,25U/29U/36U.

Techcinal Data

Product U beam steel bending machine
Brand Sinch
Applicable material 25U/29U/36U
U beam radius ≥1100mm
Bending speed 0-4.3m/min
Temperature 0-400degree
Oil temperature ≦650degree
Main pump station 30KW/120L/min/16mpa
Vice pump station 18.5KW/48L/min/20mpa
Lubrication pump station 0.55KW/3.7L/min/2mpa
Motor model Y132S-4
Power/Voltage 30KW/380V
Reducer Model Ratio 31.5
Dimention 3800*3200*1450 mm

Process

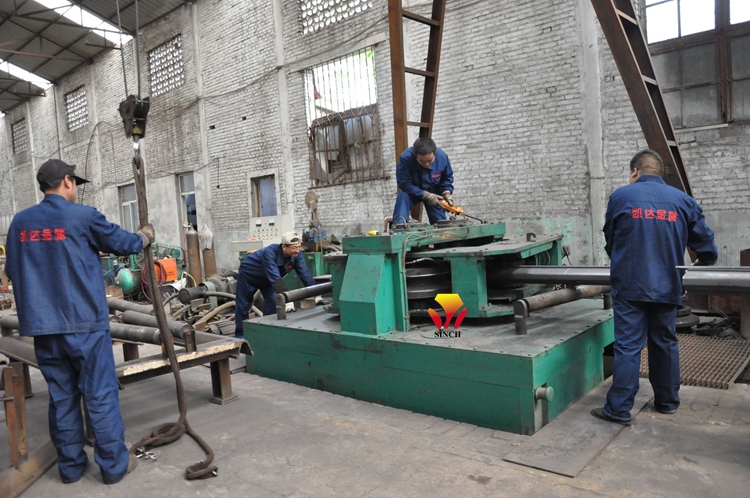

U beam bender

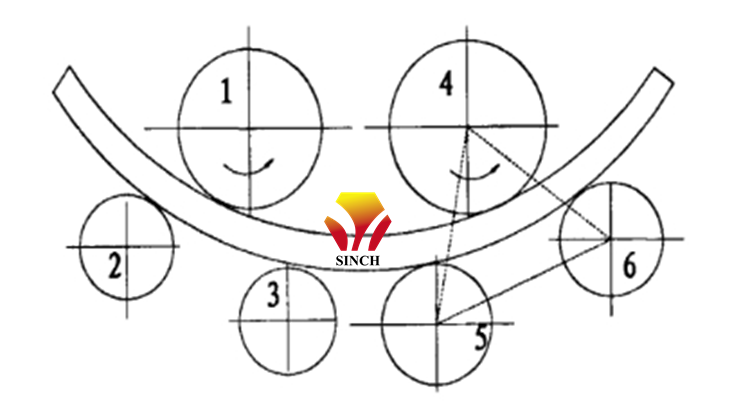

U beam rolling bending machine--4 rollers working together to press bending U beam

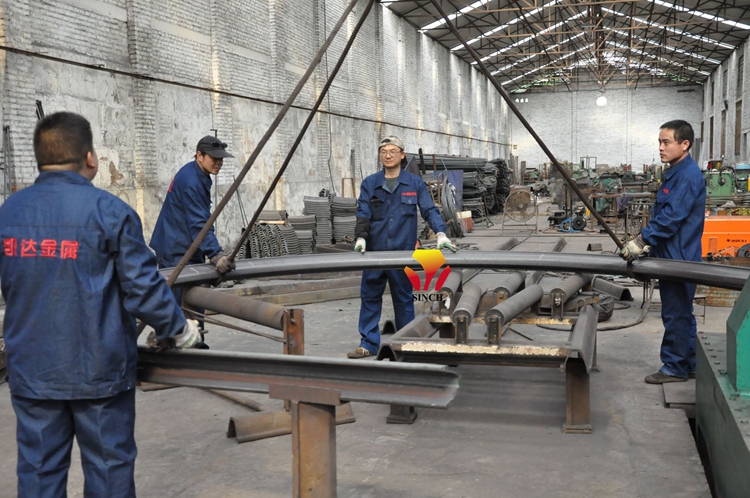

U beam bender,U beam shaping machine

Finished U beam-- one tiem finish,saving time,saving cost

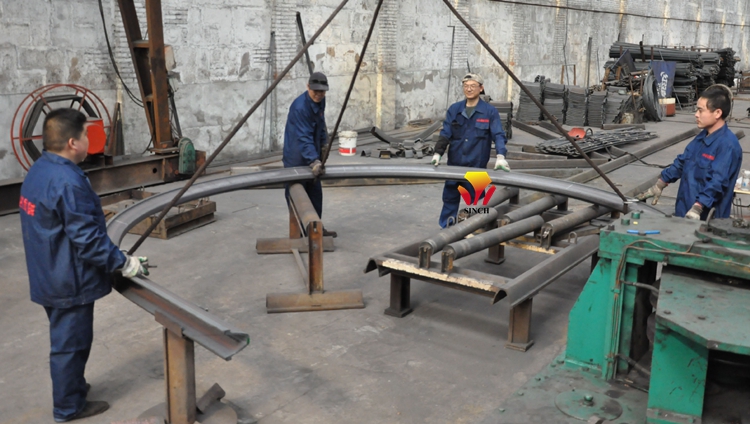

U beam forming machine,bending machineRoller bended U beam with high precision

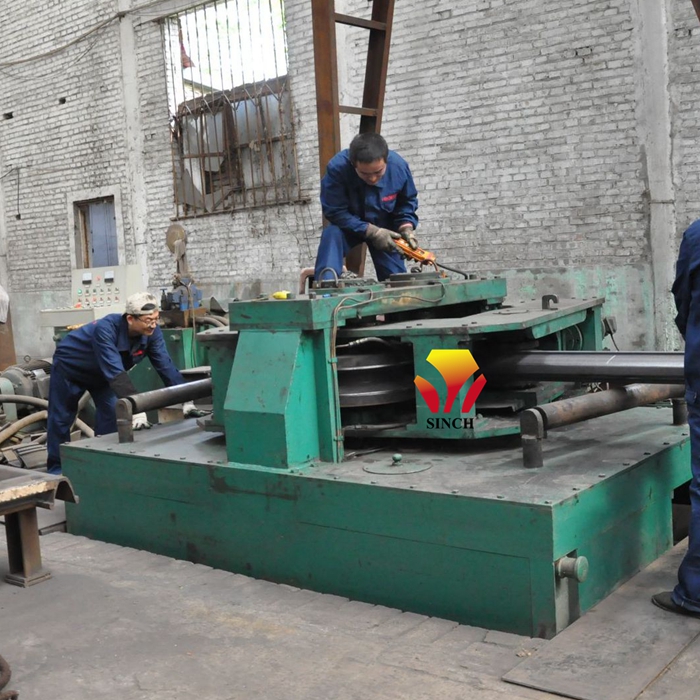

Rolling bending machine, U beam bender

Delivery of U beam bending machine

Application

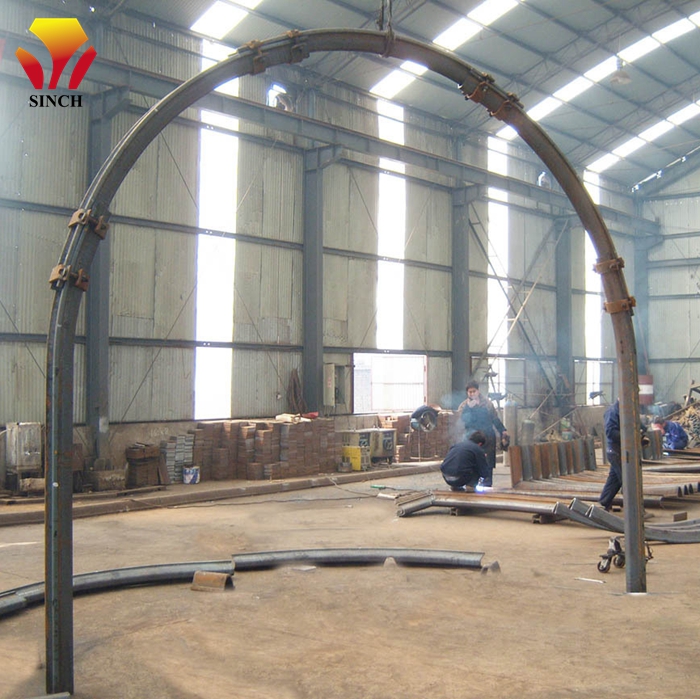

U beam tunnel support,U beam bender

U beam bender,Beam bending machine

U beam bender,U beam molding machine
