Trapezoidal Ditch Liner

Model No Customize
Move type Traction/Automatic
Power 24/30KW options
Engine Diesel Gasoline
Hydraulic pressure 20Mpa
Hydraulic tank 120L
Hydraulic pump 5.5Kw
Vibrator power 2.2kw
Feeding power 1.5Kw
Working speed 300-500m/day
Workers need 4-5 person
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Trapezoidal Ditch Liner machine is widely used in water conservancy construction. Such as farmland renovation, construction of canals, repairing canal works, pastoral watering canals, river drainage channels, canal planning, and canal construction, etc.

Drainage ditch forming machine

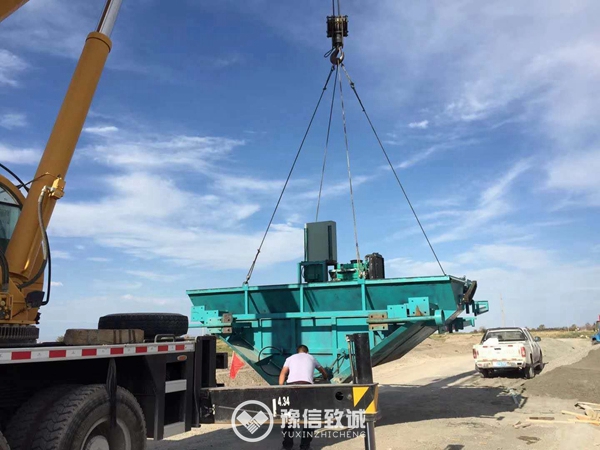

Trapezoidal Ditch Liner in factory

Drainage ditch forming machine needs to be customized according to the shape and size of the channel. Production time from 5-10 days.

The main machine, digger bucket, cutting, hopper need to be customized according to your drawings,cannot be stocked in advance.

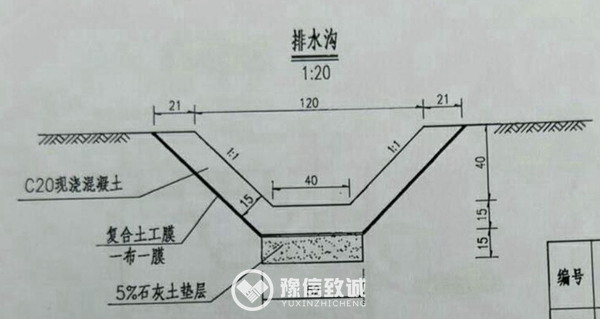

water canal drawings
Trapezoidal ditch drawings

Compared with the human work, the construction speed is fast, the forming effect is good, the channel shape is straight, the concrete material is particularly compact after vibration and extrusion, and the service life is long.

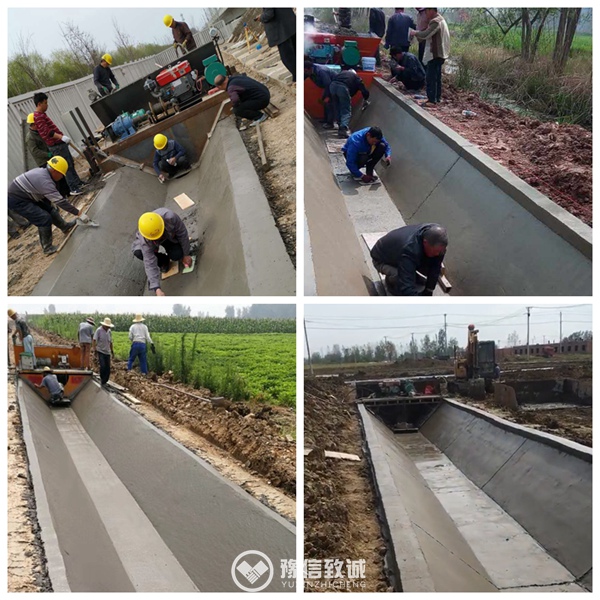

channel lining machine
Hydraulic and traction ditch machine

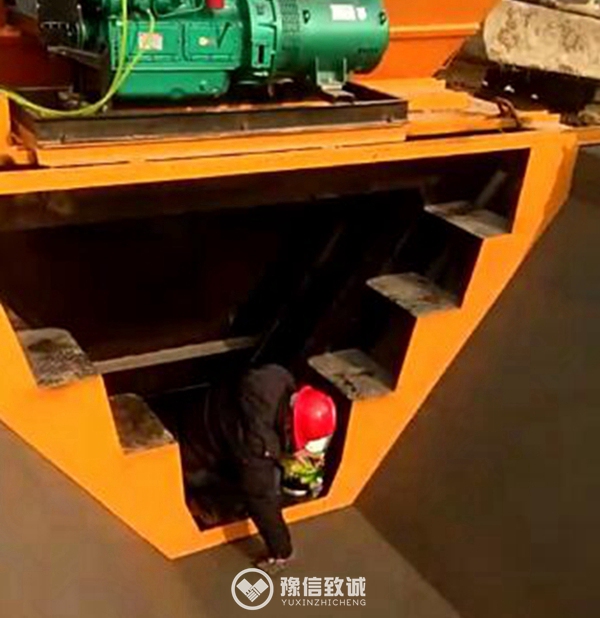

concrete ditch paver
Traction type ditch paver

The traction type is becuase the machine need to be pulled forwarder by a hoister in front of the machine, then drop concrete into hopper,using vibrator to pave the concrete smoothly.

Trapezoidal ditch paving machine

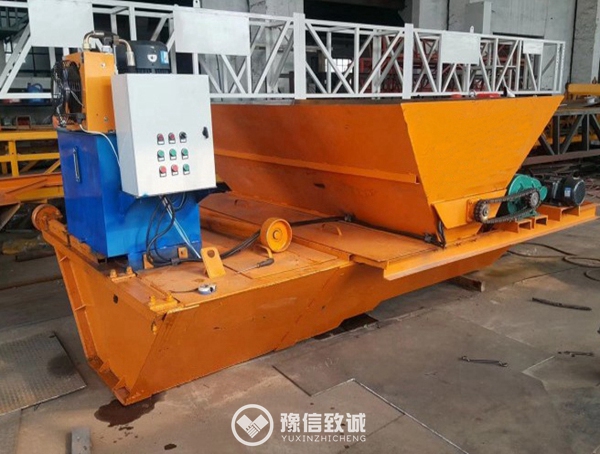

3.8m wide Traction type ditch paver
Road side ditch forming Machine

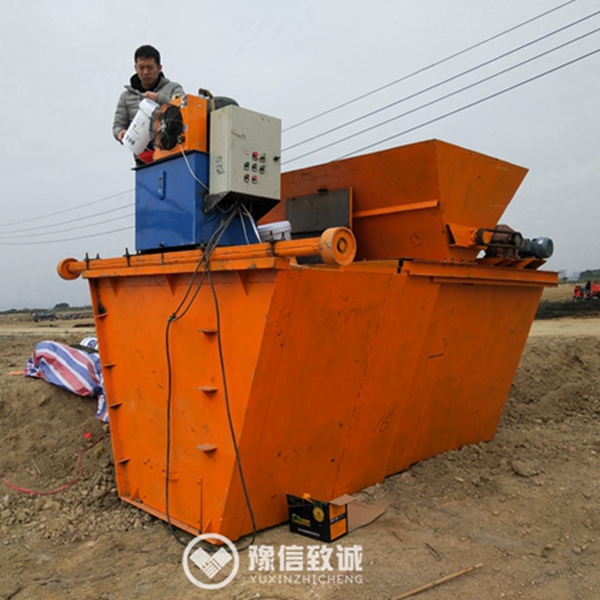

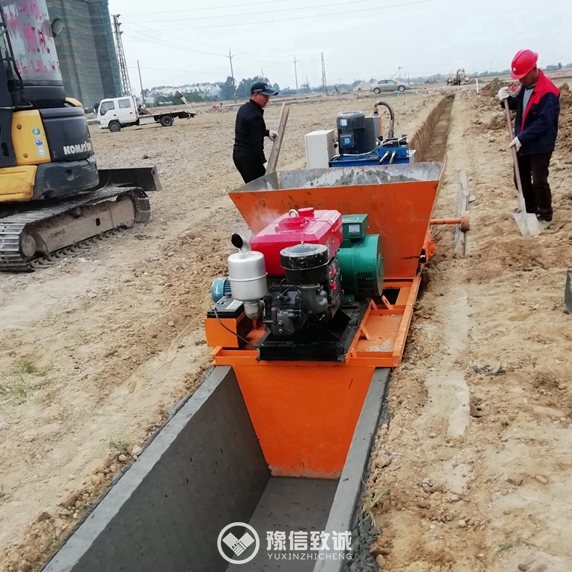

Hydraulic type ditch paver

Hydraulic type ditch paver is using diesel power to start the hydraulic pump,the hydraulic cylinder moving forward and backward to squeeze the concrete to mold part.Then forming the ditch.

canal lining machine

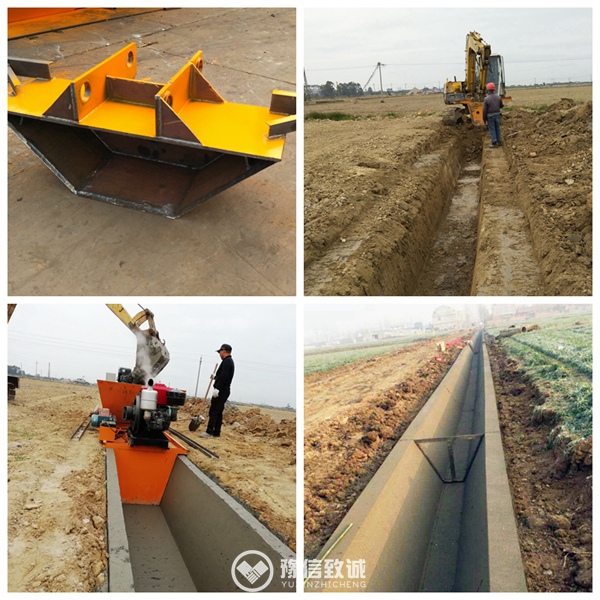

Trapezoidal ditch paving machine working process

Working process:

  1. Using traoezoidal digging bucket to dig the canal.
  2. Put mixed concrete into hopper then output the ditch.
  3. Cutting the expansion joint by traoezoidal cutting device.

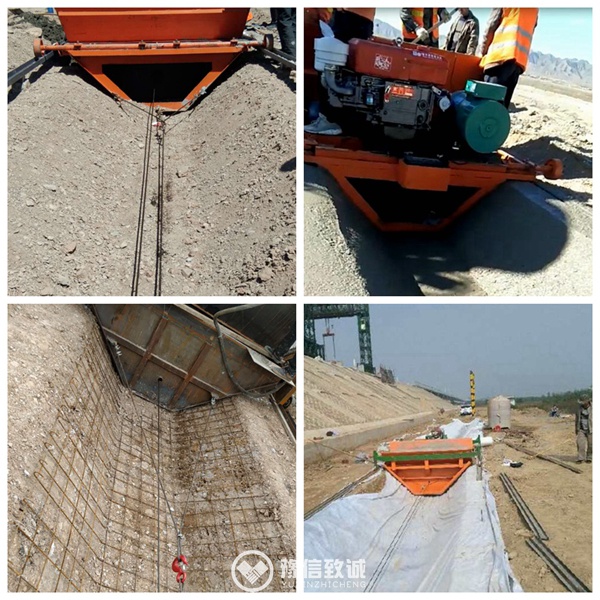

canal forming Machine

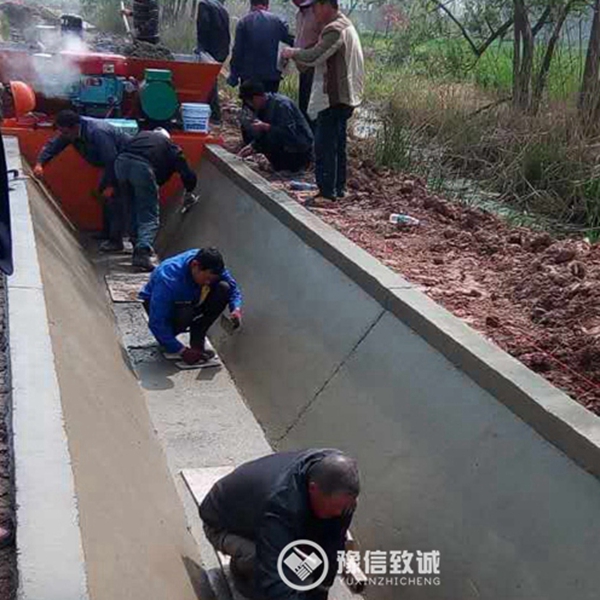

Polishing the concrete ditch

Note:

Please provide the drawings to us first, we will provide a design for you in 2 day. Production time: 5-10 days after get 50% down payment.
