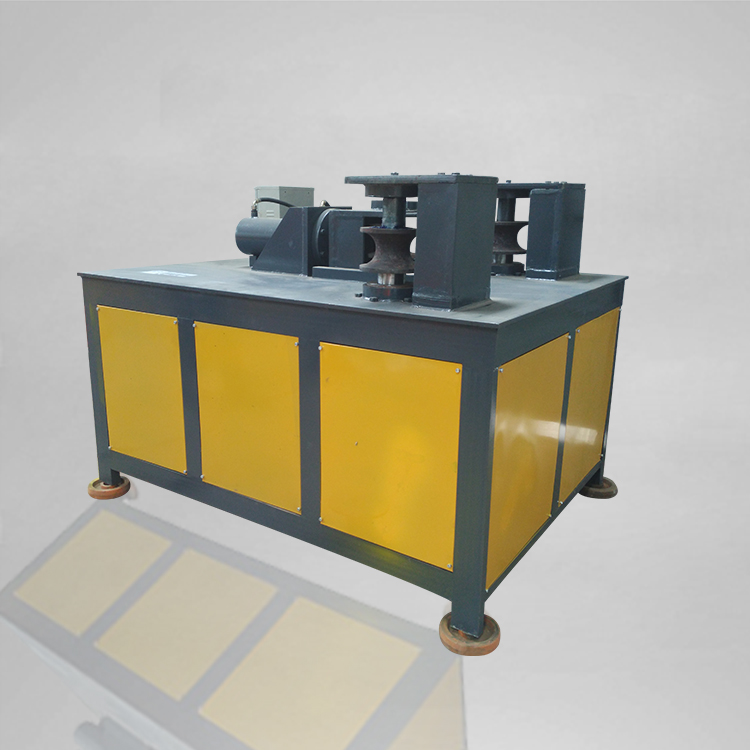

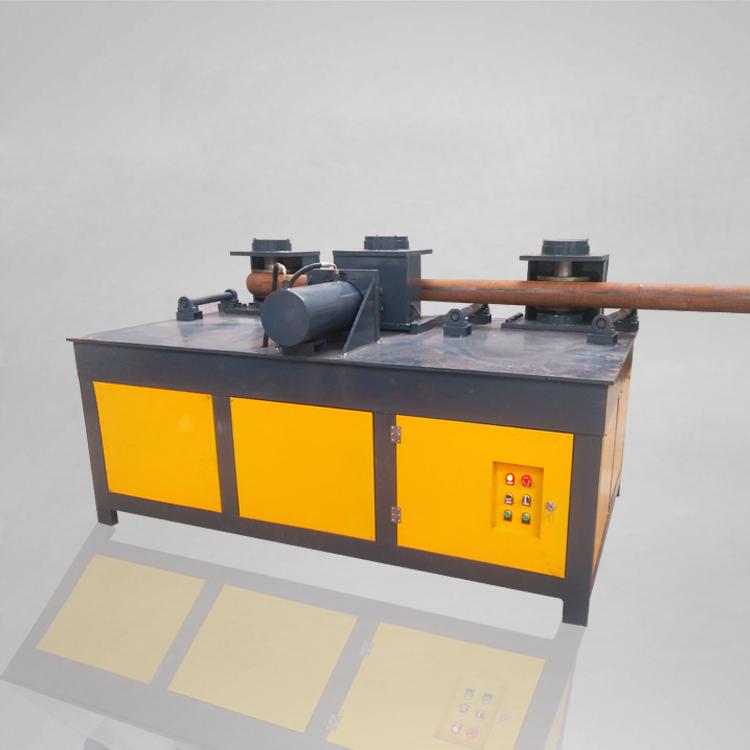

Hydraulic Steel Pipe Bending Machine

Hydraulic pipe bending machine is suitable for big and heavy pipe bending &circling work.

Pipe diameter 89mm-220mm,or customize.Pipe thickness 6mm-8mm.

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Hydraulic steel pipe bending machine is suitable for big and heavy pipe bending &circling work.

Pipe diameter 89mm-220mm,or customize.Pipe thickness 6mm-8mm.

WG-100 for pipe diameter 89-100mm

WG-150 for pipe diameter 89-150mm.

WG-220 for pipe diameter 89-220mm

By changing mold, it can bend Round/square/rectangle pipe,angle steel, H beam,channel steel, C-shaped steel,T-shaped steel .

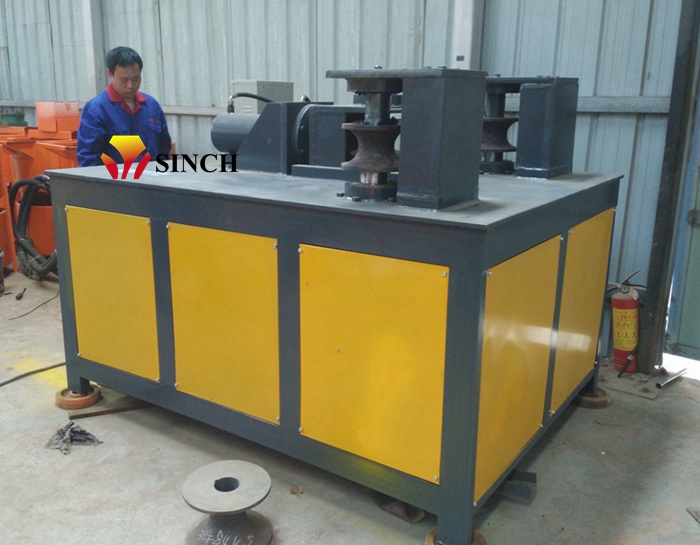

Steel pipe bending machine in factory
Steel pipe bending machine in factory

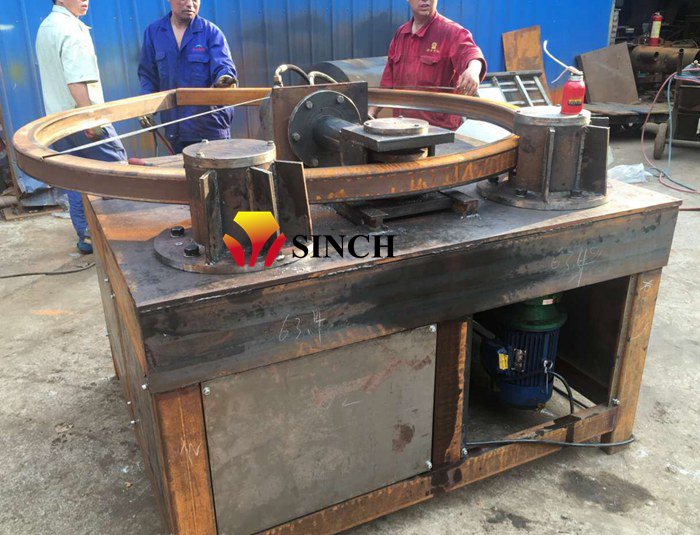

Bending theory of pipe bender
Bending theory of pipe bender

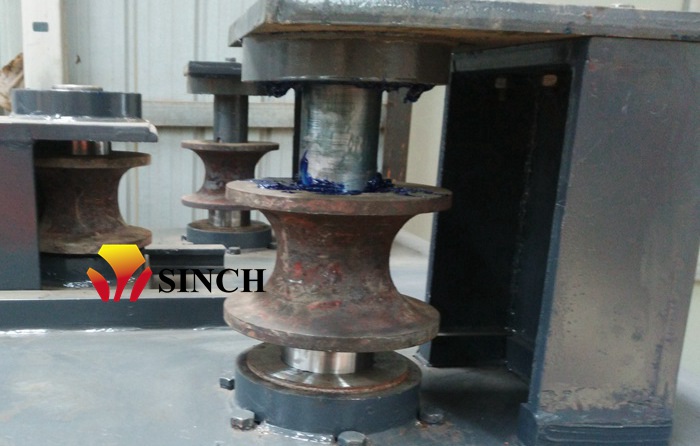

bending mold
3 pcs mold /set

Features of steel pipe bending machine:

1.For large pipe bending , thickness 6-8mm.

2.Heat treated mold,more durable .

3.Easy to change mold.

4.Round/square/rectangle pipe,angle steel, H beam,channel steel, C-shaped steel,T-shaped steel all workable .

5.Each different size need a mold. Mold need to customize, time 4-7 days.

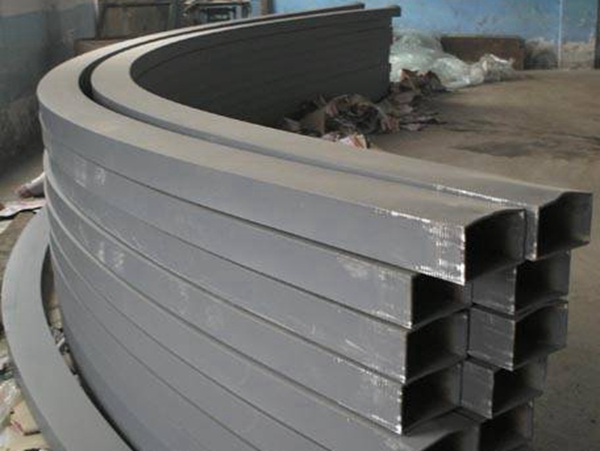

Square pipe bending testing in factory
Square pipe bending testing in factory

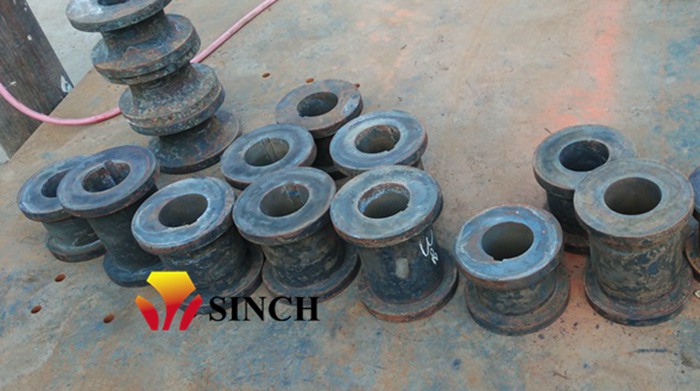

Forged molds
Forged molds(molds can be customized according to pipe size)

Technical specifactions:

Model noWG-100/150/200
Applicable pipe diameter89-200mm or customize
Pipe thickness6mm
Oil cylinder working speed1-13mm/s
Power12Kw
Voltage380/220V
Main driving wheel rotating speed7r/min
Min bending diameter1.5m
Hydraulic system pressure16Mpa
Hydraulic oil46#,68#(80L-100L)
Dimension1700*1200*920mm
Weight1600kg

Application of hydraulic steel pipe bending machine:

All the pipes using in road, bridge,tunnel, greenhouse,hydro power, ship,furniture,decoration,etc.

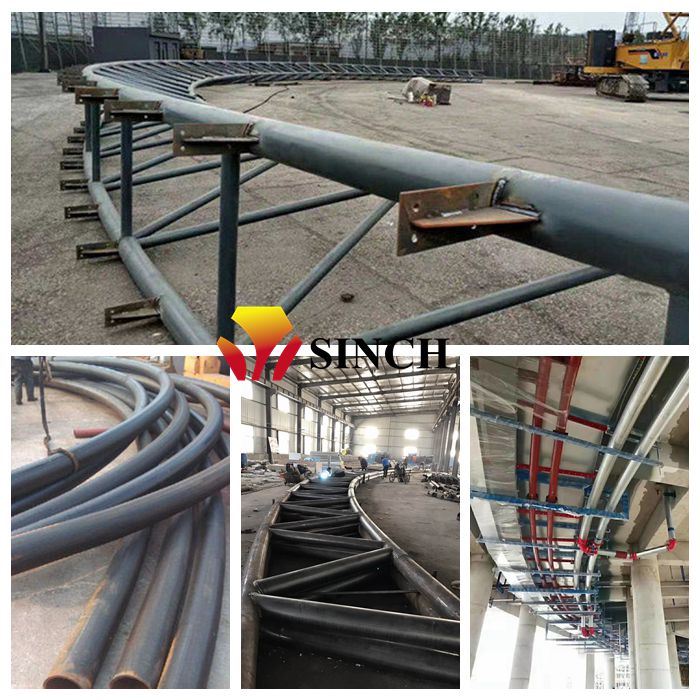

bended steel pipe applications
bended steel pipe applications

FAQ :

Lead time: 15 days after received payment.

Price term: FOB,CIF.CFR.

Payment term: T/T or L/C at sight.

Shipping port: Qingdao Shanghai Ningbo Guangzhou

Packing: Wooden case or according to your requests.

Warranty: 12 months without wearing parts
