Steel beam bending machine



Model no WGJ-250
Type Hydraulic/CNC
I beam Max #25
H beam Max #175
Dimension 2.5m*1.5m*1.2m
Weight 1800kg
Oil cylinder speed 1-13mm/s
Power 12Kw/380V
Rotating speed 7r/min
Min bending diameter 2M(according to your beam size)
Pressure 16Mpa
Hydraulic oil 68# ( winter)  46# (summer)

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • Technical data
  • Bending Effect
  • Application
  • Packing
  • Free accessories

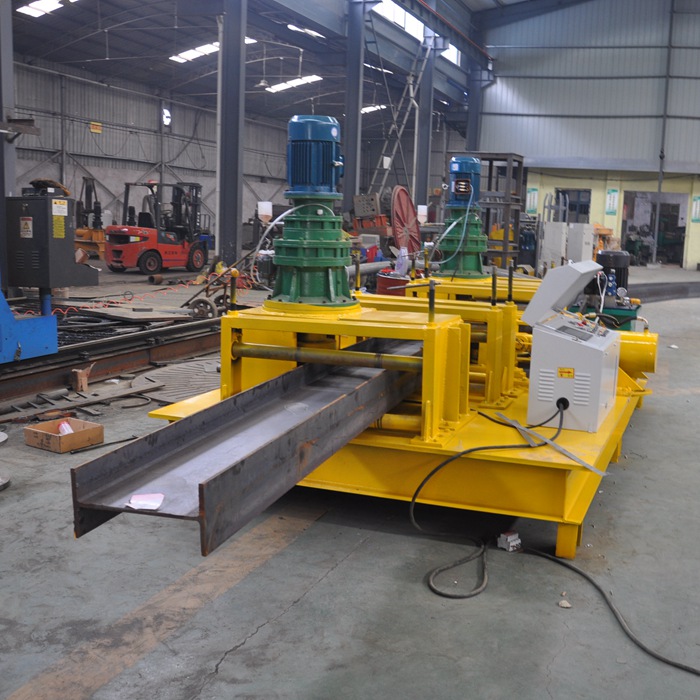

steel beam bending machine

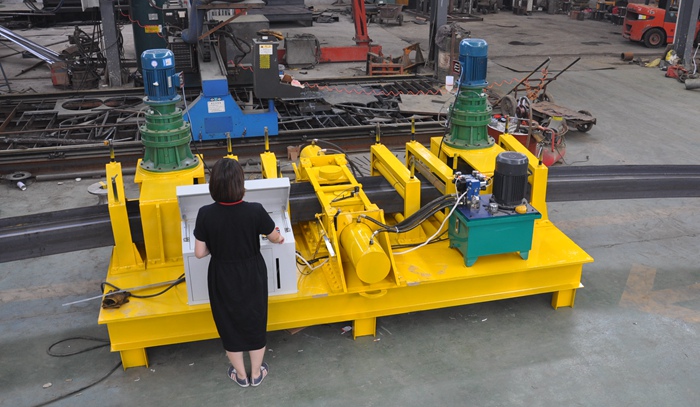

Steel beam bending machine

Steel beam bending machine is electric drive,hydraulic power,can bend max 280mm I beam and 200 H beam.WGJ 250 steel beam bender can bend I beam,H beam,U beam,Tee stem,Channel steel and angle steel etc.

Sinch steel beam bending machine including 1 guide roller,2 bending rollers,2 electric motors and 2 reducers.Strong power,stable performance and less waste material makes it the most favorable beam bending equipment.



steel beam bender

400 beam bending



Technical data



Model no WGJ-250
Type Hydraulic/CNC
I beam Max #25
H beam Max #175
Dimension 2.5m*1.5m*1.2m
Weight 1800kg
Oil cylinder speed 1-13mm/s
Power 12Kw/380V
Rotating speed 7r/min
Min bending diameter 2M(according to your beam size)
Pressure 16Mpa
Hydraulic oil 68# ( winter)  46# (summer)

Bending Effect

bending effect bending effect bending effect

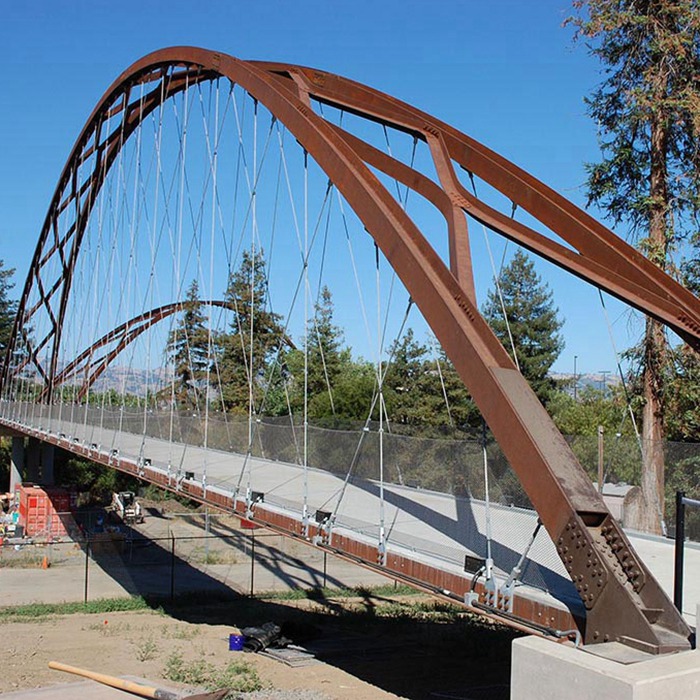

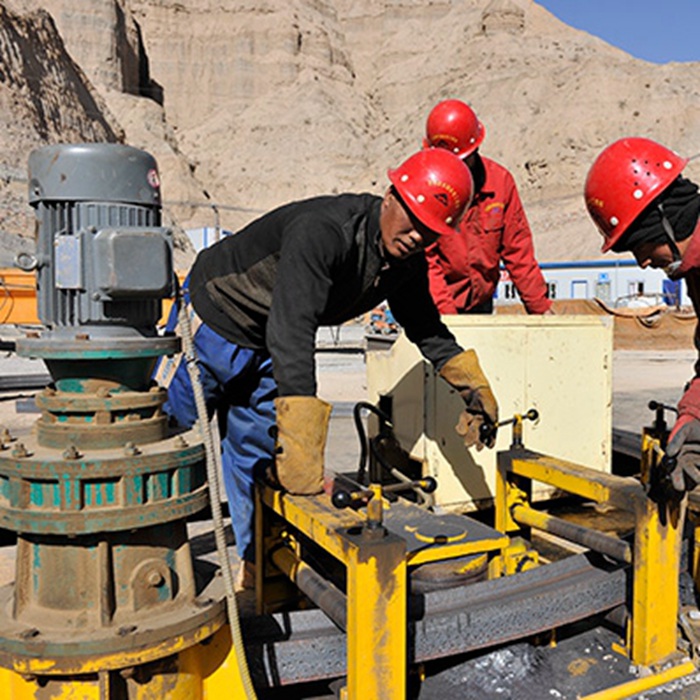

Application

application application application

Packing

packing of steel beam bender

Plywood case packing

写说明…

Free accessories

free accessories of steel beam bender

Adjusting bars/oil cup/tool
