Pneumatic shotcrete machine

Model SPZ-5A (Pneumatic Motor)
Capacity 5-6 m3/h
Max. conveying distance ≤200 m
Water/cement ratio ≤0.4
Max.Aggregate.size 15 mm
Delivery pipe ID 51 mm
Working pressure 0.6 MPa
Operation air consumption 8 m3/min
Air consumption of air motor 9.5 m3/min
Dimension 1350*750*1200 mm
Total weight 600kg
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Pneumatic shotcrete machine

Production Description:

Pneumatic shotcrete machine using pneumatic power to drive shotcrete machine.No need electric power. Need to work with air compressor.To spray dry concrete or moist mix concrete form shotcrete machine to surface or to roofs.

dry concrete spray machine

Dry concrete spray machine

Pneumatic Guniting Machine meets the high demand in building and construction industry by providing specialised concrete spraying technique. They are equally suitable for refractory lining work in foundries, power plant, refineries and steel industry.

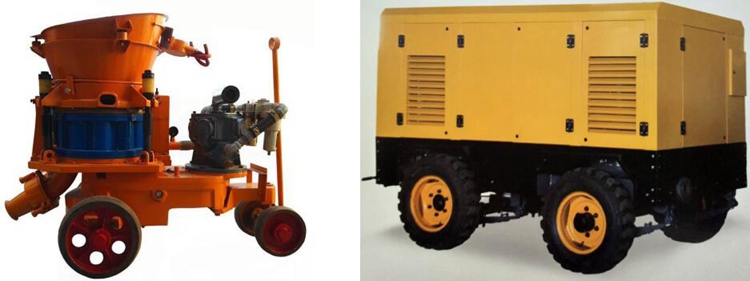

air shotcrete machine with air compressor

Air shotcrete machine with air compressor



Technical Parameters of Pneumatic concrete spray machine:

Model SPZ-5A (Pneumatic Motor)
Capacity 5m3/h
Max. conveying distance ≤200 m
Water/cement ratio ≤0.4
Max.Aggregate.size 15 mm
Delivery pipe ID 51 mm
Working pressure 0.6 MPa
Air consumption 8 m3/min
Air consumption of air motor 9.5 m3/min
Dimensions 1350*750*1200 mm
Total weight 600kg



Application:

1.        Concrete Repair (Bridge Repair, Infrastructure Repair, Etc)

2.        Rockscapes

3.        Artificial Rocks

4.        Retaining Walls

5.        Panel Building Systems

6.        Zoos

7.        Slope Stabilization

8.        Refractory Spraying

9.        Concrete Domes

10.       Mine and Tunnel Support and Walls

11.       Swimming Pools

12.       Straw Bale Construction

13.       Water Parks

14.       Skateboard Parks

15.       Repairing and rebuilding civil structures.

16.       Water Proofing etc.

Application of shotcrete machine

Slope reinforcement and wall concrete spray work



Application of pneumatic shotcrete machine

Tunnel inside concrete spraying and pools concrete lining work

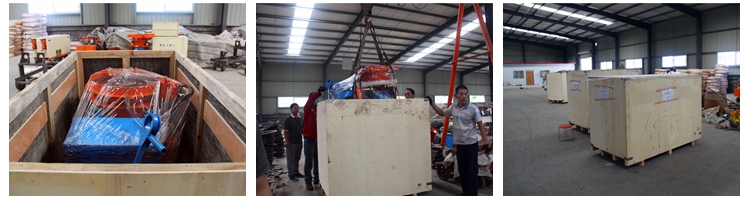

Pneumatic concrete spray machine packing details:

pneumatic dry shotcrete machine

Export polywood case packing

FAQ:

  1. How many model number do you have for pneumatic concrete spray machine? SPA-5A,7A,9A.
  2. How many cubic meters air it need ? For SPA-5A, it will need 20 cubic meters air per minute to drive the machine and blow the concrete.
  3. Delivery time: 7-10 days after deposit.
  4. Trade terms: FOB,CNF,CIF,EXW.
  5. Payment terms: 30% T/T before production,70% T/T before delivery.
