I beam bending machine



Model no WGJ-250
Type Hydraulic/CNC
I beam Max #25
H beam Max #175
Dimension 2.5m*1.5m*1.2m
Weight 1800kg
Oil cylinder speed 1-13mm/s
Power 12Kw/380V
Rotating speed 7r/min
Min bending diameter 2M(according to your beam size)
Pressure 16Mpa
Hydraulic oil 68# ( winter)  46# (summer)

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • Technical data

I beam bending machine is designed for bending H beam I beam at first. Then by change molds, it can bend C beam ,T beam,U beam,Rail beam or Steel pipes.

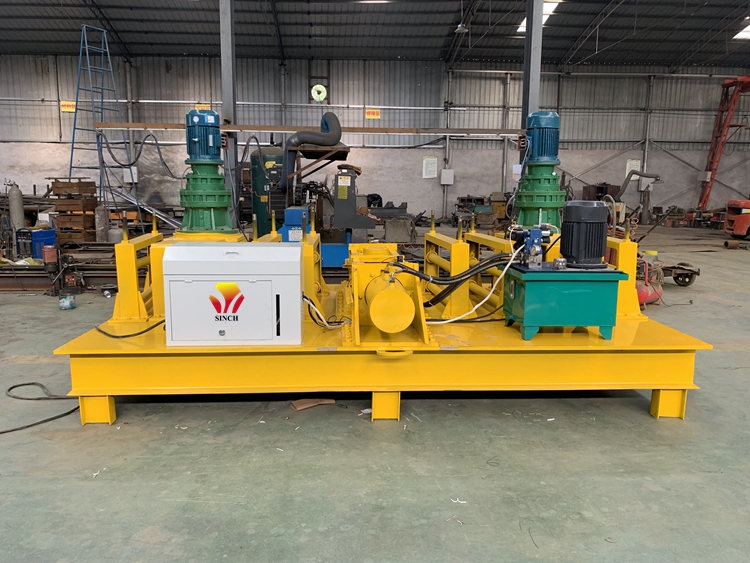

 Beam bending machine
400*200mm Beam bending machine

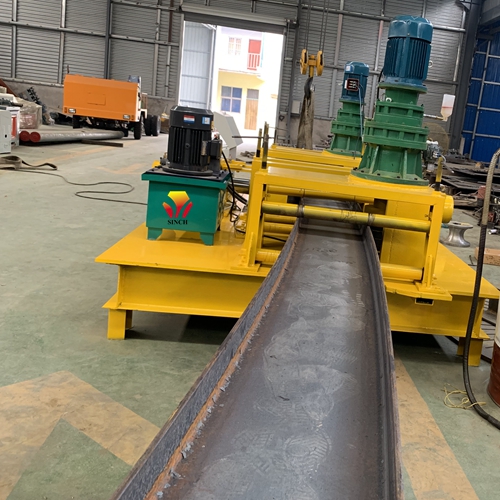

Bending effect of i beam bending machine

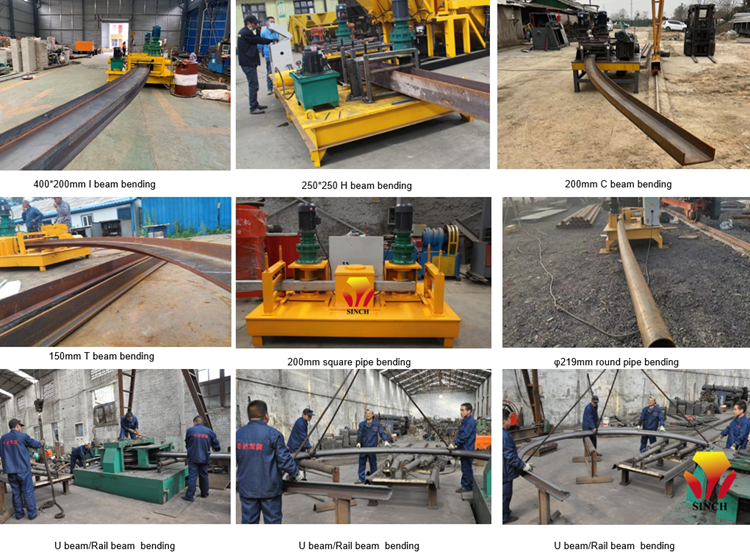

various bending work

Structures:

I beam bender including hydraulic system.Hydraulic pump+hydralic cyliner(1 or 2 customized.) 3 rolles(2guide rollers and 1 pushing roller).2 moving motors and 2 reducers.1 control box.

I beam bender machine are all customized according to your beam shape and size. The working capacity is from 100mm beam to 500mm beam.

Pre-information of beam bender:

  1. Specific beam size: width,height,thickness,etc.
  2. Hard way bending or easy way bending.
  3. Bending radius.

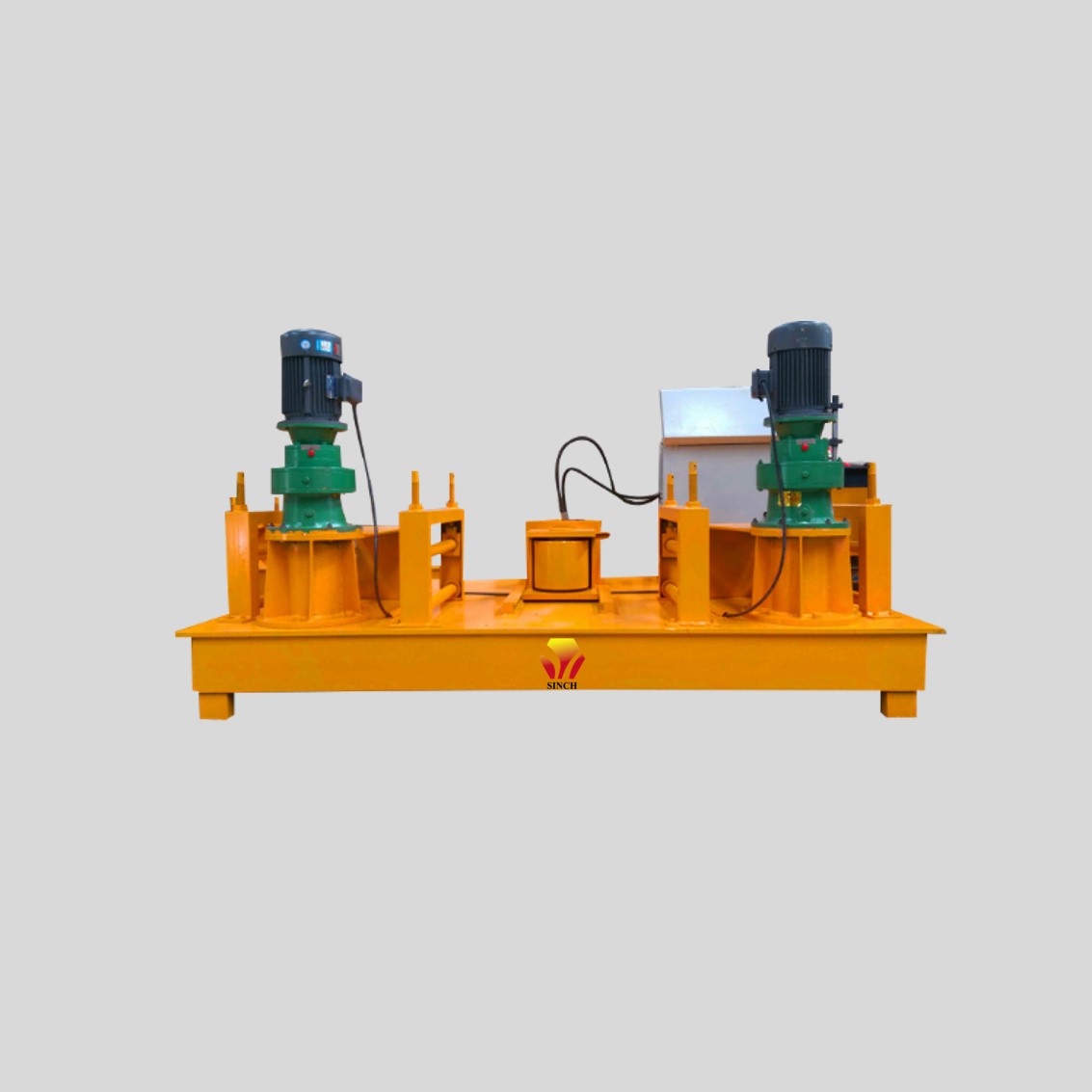

I  beam bending machine
I beam bending machine
easy way bending and hard way bending
Easy way bending and hard way bending

Applications of I beam bender:

1.Stadium,airport,railway station roofs.

2. Tunnel construction.

3. Arch Supporting structure.

3. Bridge construction.

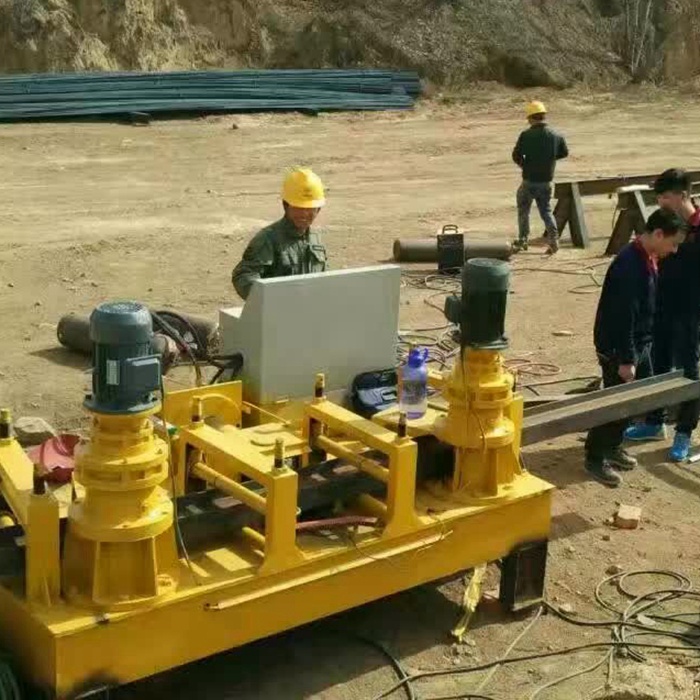

Applications of beam bender
Applications of beam bender

Packing of I beam bender:

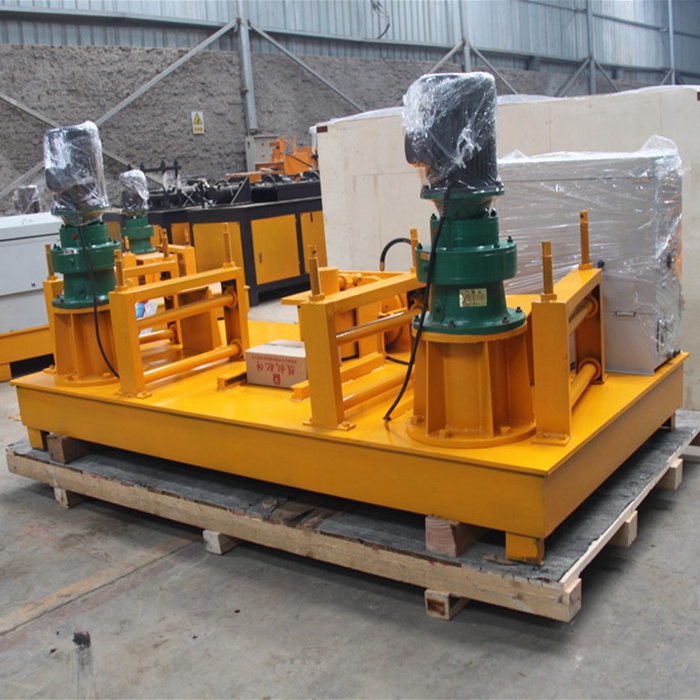

Packing detail of I beam bender
Packing detail of I beam bender

FAQ of beam bending machine:

  1. Productions time: 7~15 days according to your beam size and bending way.
  2. Payment terms: 50% T/T before production,50% T/T before delivery. Or L/C at sight.
  3. Trade term: FOB,CIF,EXW.
  4. Delivery port: Shanghai or other port in China.
