Hydraulic Rock Splitting Rod

Model No. Drilling
diameter
mm
Drilling
depth
mm
Splitting
force
T
Weight
Kg/pcs
Working pressure
MPa
Distance
mm
YX-R90 90 >1000 260 32 120 500~700
YX-R110 110 >1000 411 47 120~150 1000~1500
YX-R130 130 >1000 520 80 120~150 1000~2000
YX-R150 150 >1000 600 100 120~150 1000~2500
YX-R180 180 >1000 780 168 120~150 1200~3000
YX-R250 250 >1200 1250 330 120~150 1500~5000
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Brief introduction of hydraulic splitting rod equipment:

Hydraulic rock splitting rod composed of two parts: the power station and the plunger splitting rod. The plunger splitting rod is made of ultra-high-strength steel, manufactured by vacuum heat treatment and other top technologies, and is wear-resistant and durable.

Piston type rock splitting rod
Piston type rock splitting rod

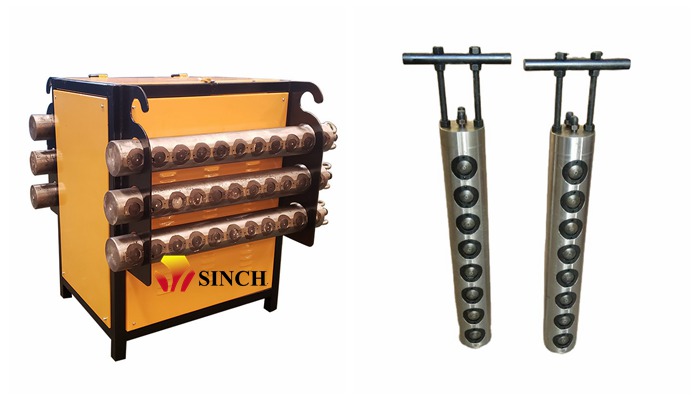

The main components of a set of equipment are: several plunger splitting rods, a hydraulic power station, a transport frame, a set of high and low pressure hydraulic hose and a diverter.

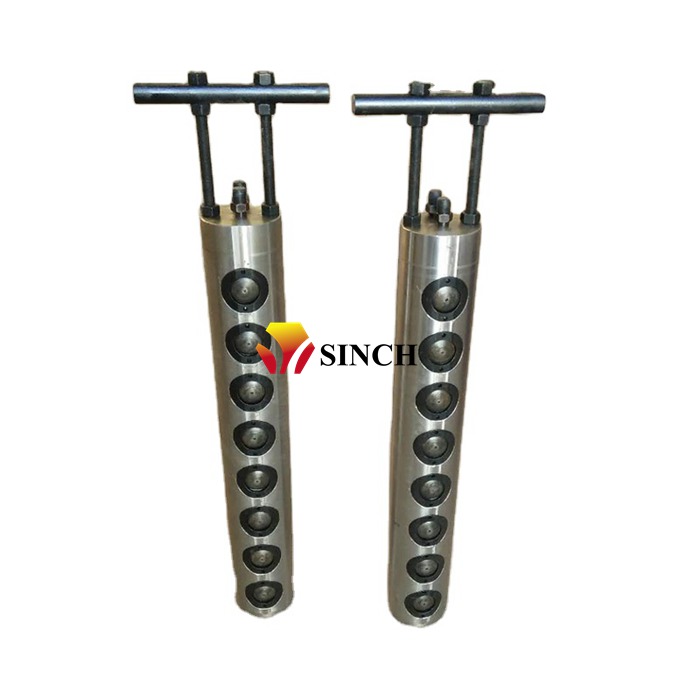

rock splitting rod
Splitting rod,size can be customized

Technical data of rock splitting rod:

Model No.Drilling diameter
mm
Drilling depth
mm
Splitting force
Mpa
Weight
Kg/pcs
Working pressure
MPa
Distance
mm
YX-R9090>100026032120500~700
YX-R110110>100041147120~1501000~1500
YX-R130130>100052080120~1501000~2000
YX-R150150>1000600100120~1501000~2500
YX-R180180>1000780168120~1501200~3000
YX-R250250>12001250330120~1501500~5000

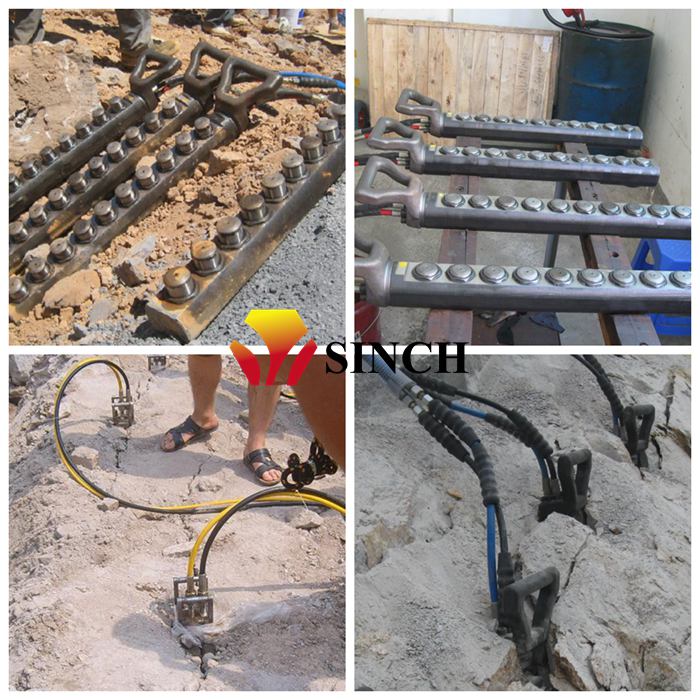

Application of hydraulic stone splitting rod:

Excavation of surface stones, concrete,rocks,underground foundation works, tunnel works, etc.

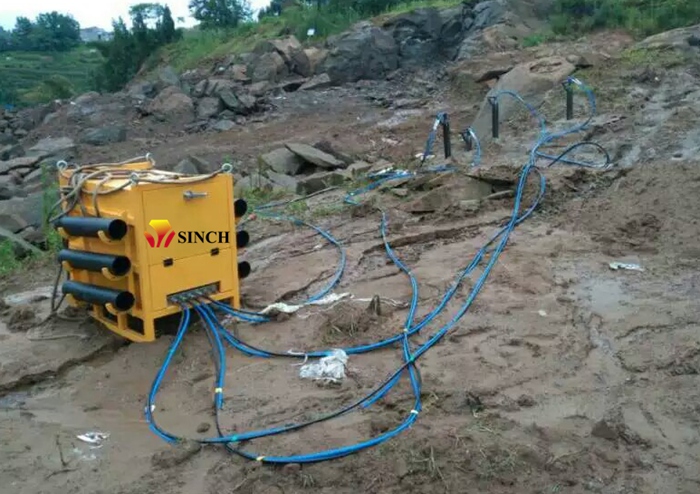

Rock splitting bar
Rock splitting bar in stone splitting

Features of hydraulic splitting bar:

  1. Compared with traditional blasting chemical construction, the construction cost is low.
  2. There is no vibration, no stone splash phenomenon, safety and environmental protection.
  3. The direction and amount of crushing can be adjusted.

Construction method:

  1. Use a down-the-hole drill to drill holes in the rock first, with a hole diameter of 120mm, a drilling depth of about 1000~2000mm, and a hole spacing of 1000-2000mm (depending on the rock material).
  2. Put the giant hydraulic splitting rod into the drilled hole according to the instructions of the equipment, start the equipment, and it only takes 30 seconds to hear the sound of the rock being expanded by the splitting rod. When the splitting rod is split, the operating device will retract the splitting rod piston, so that the entire process of splitting the rock is completed easily.
  3. After splitting, use auxiliary tools or excavators to separate the cracked rocks.
Working principle of rock splitting rod
Working principle of rock splitting rod

Other rock splitting machine:

Excavator mounted big rock splitting machine

Hydraulic rock splitting gun
