Hydraulic Rock Splitter
- PRODUCT DETAIL
Hydraulic rock splitter, rocking splitting machine can be used in stone splitting ,concrete splitting and rock breaking works.It is widely used in mine construction,road construction or tunnels.It helps to break big rocks or stone into small pieces without blasting. It is small,easy to move,powerful and more environmentally friendly.
Features of concrete splitter:
1.Easy to use,safe.
2.Cheap price.
3.Small and light weight.
4.Saves time & money in demolition work.
5.Dust free, Vibration free.

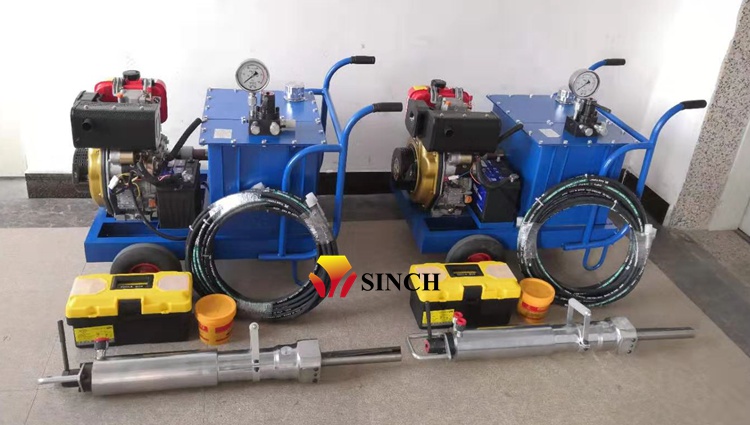

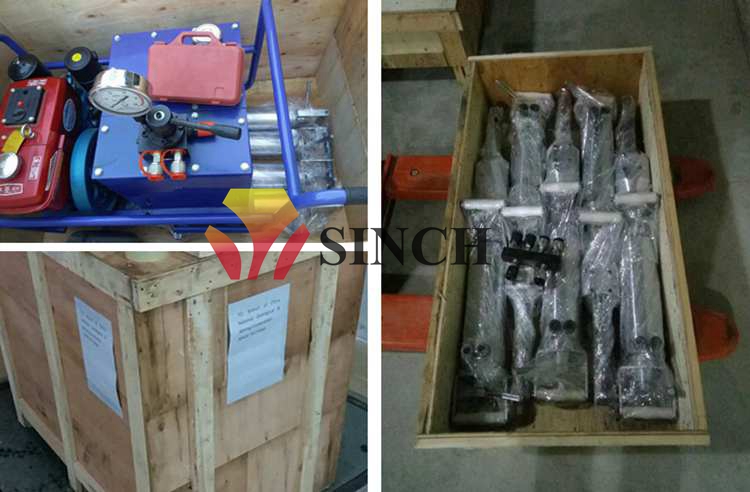

A whole set rock splitting machine including:
- Hydraulic power pack or called hydraulic station.

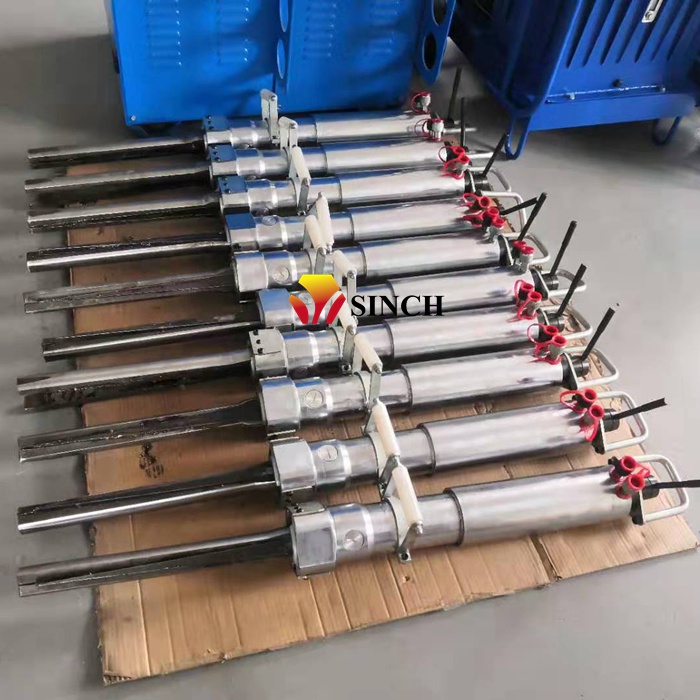

- Hydraulic splitting guns. 1~10 guns .
- Splitting wedge.
- Divider
- Hydraulic hose.

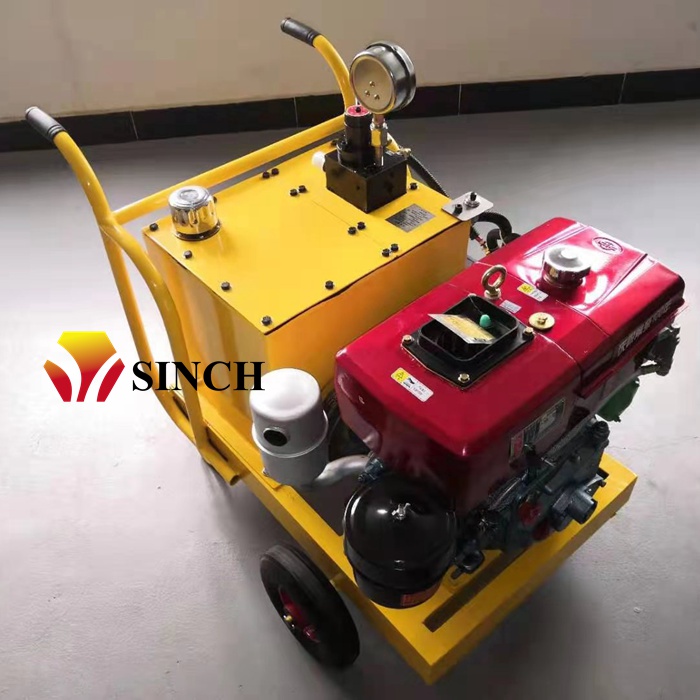

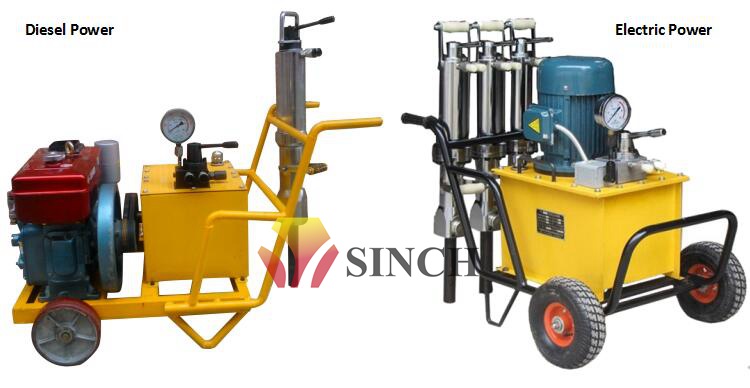

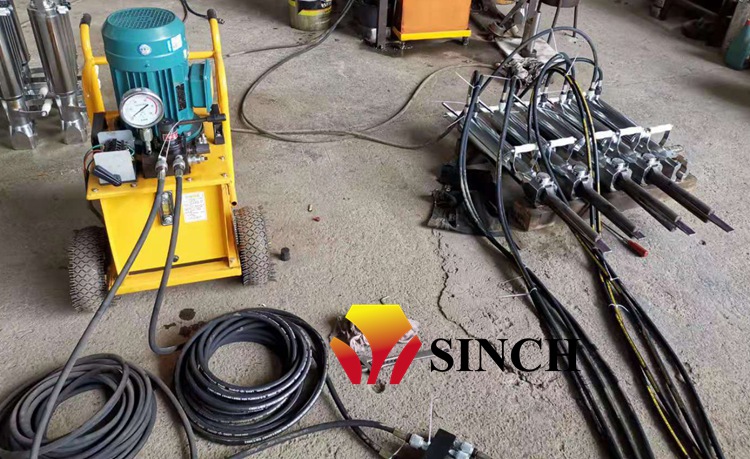

The Hydraulic power pack of rock splitting machine can be diesel power or electric power.

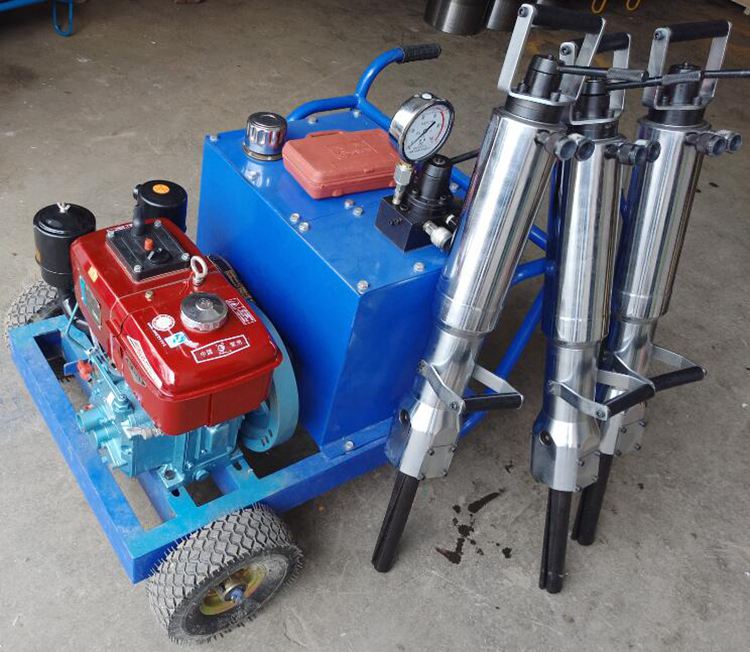

Diesel power is suitable for wild working conditions, can solve the power problem. Electric power is quiet.
The power was decided by how many splitting guns you will use at the same time.And the splitting distance.
You can choose according to your working situations.
Power pack specifications:
| Power pack | Power | Pressure | Gun (pcs) | Work flow (L/M) | Weight | Size (mm) |
| Diesel | 6 HP | 63~80Mpa | 1~6 | 3~15 | 130kg | 1150*1180*940 |
| Diesel | 8 HP | 63~80Mpa | 1~10 | 3~15 | 140kg | 1150*1180*940 |
| Diesel | 10 HP | 63~80Mpa | 1~12 | 3~15 | 150kg | 1150*1180*940 |
| Electric | 2.2KW | 55-60Mpa | 1~3 | 2~13 | 60kg | 380*240*410 |
| Electric | 4KW | 55-60Mpa | 3~6 | 2~13 | 75kg | 384*280*620 |
| Electric | 5.5KW | 55-60Mpa | 6~10 | 2~13 | 100kg | 450*410*700 |
Splitting Gun Specifications:
| Model No. | Cylinder diameter | Wedge length | Drilling diameter | Drilling depth | Splitting force | Weight |
| H44 | 90mm | 250mm | 44mm | 450mm | 310～520T | 31 kg |
| H46 | 90mm | 350mm | 46mm | 550mm | 360～560T | 32 kg |
| H50 | 90mm | 450mm | 50mm | 600mm | 420～700T | 33 kg |

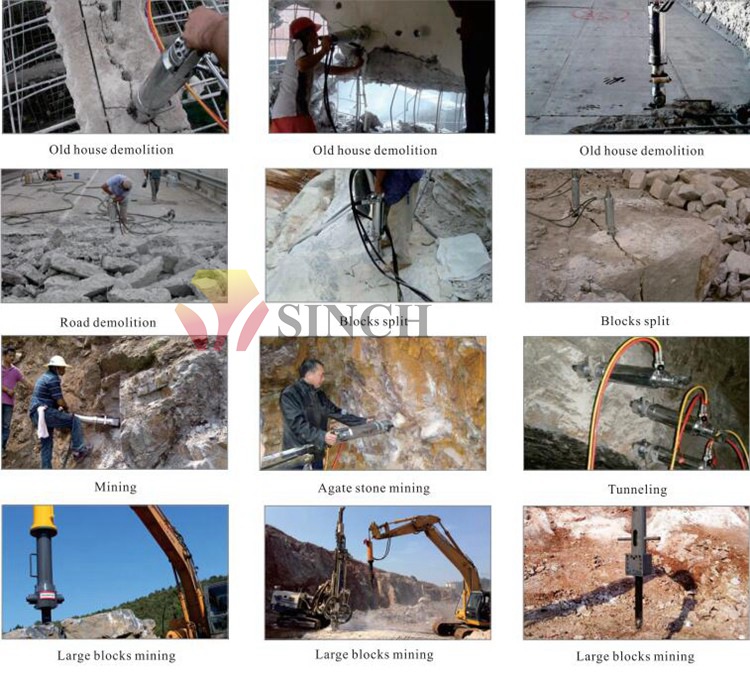

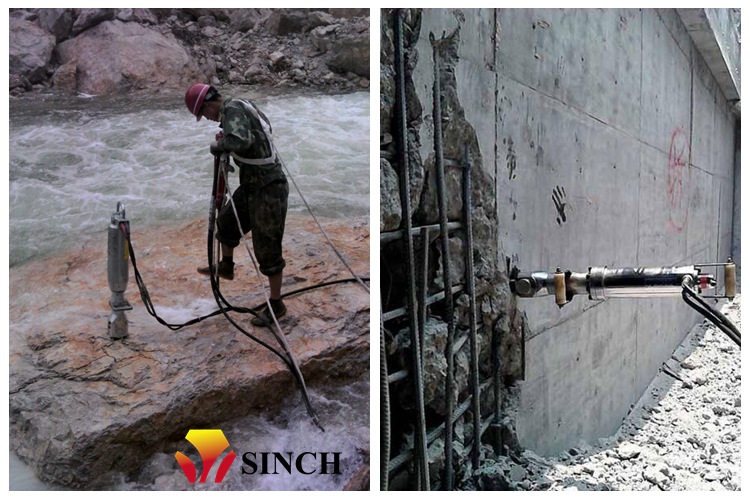

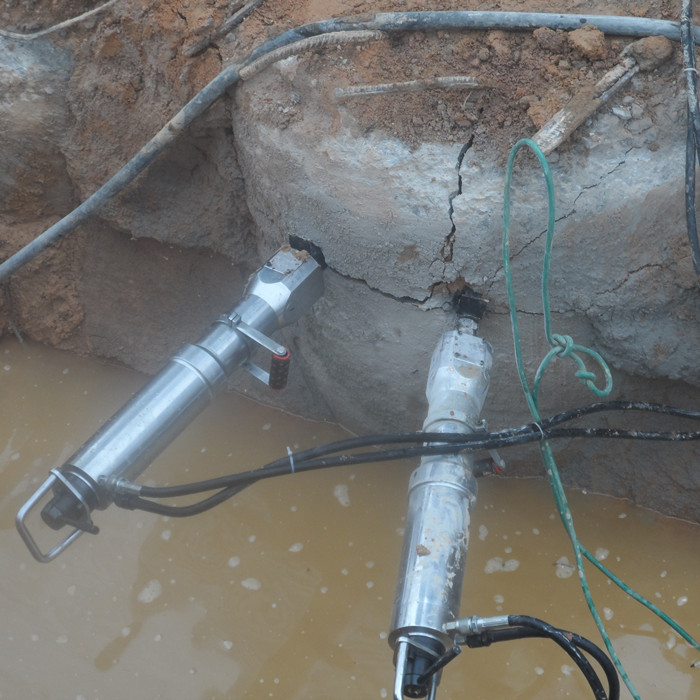

Applications of stone splitter:
1.All kinds of natural stones, rock, granite, marble mining & quarrying
2.Machine bases fracture
3.Bridge columns demolition
4.Reinforced concrete structures removal
5.Mass foundations splitting
6.Controlled demolition of pillars, concrete and walls where heavy equipment is impractical
7.Staircase removal
8.Premises that may be in continual use such as hospitals, factories, offices and hotels removing redundant reinforced concrete structures, concrete machine beds and plinths, mass filled concrete etc.
9.Underwater demolition
10.Demolition in a restricted space
11.Tunnel work
12.Trench excavation

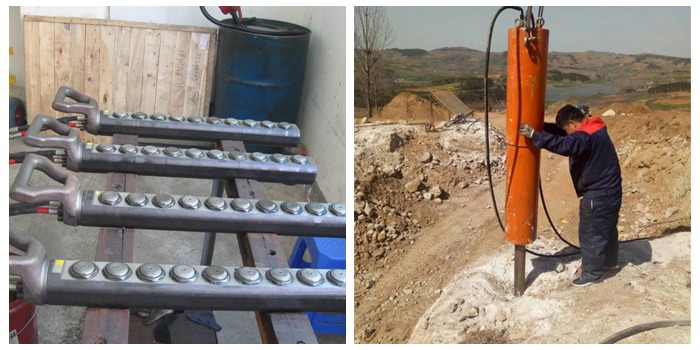

Other Splitting Gun:
