GYP-90 Hydraulic Wet Shotcrete Machine

Model No

GYP-90

Capacity

3-7m3/h adjustable

Max pressure

15Mpa

Power:

30Kw/380V/3phase

Max. Aggregate Size

15mm

Max.Horizontal Shotcrete Distance:

100M

Max.Vertical Shotcrete Distance:

30M

Max.Horizontal Convey Distance:

120M

Max.Vertical Convey Distance:

60m

Shotcrete air Consumption:

22-25m3/min

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

GYP-90 Hydraulic Wet Shotcrete Machine can be used as a wet shotcrete machine,3~7 cubic meters/power.After replaced to steep pipes ,it can be used as concrete pump,convey distance max 120 meter .

Compare with small electric type shotcrete machine,it is more powerful and stable.Widely used in slope reinforcement, tunnel lining, subway construction,foundation grouting,etc.

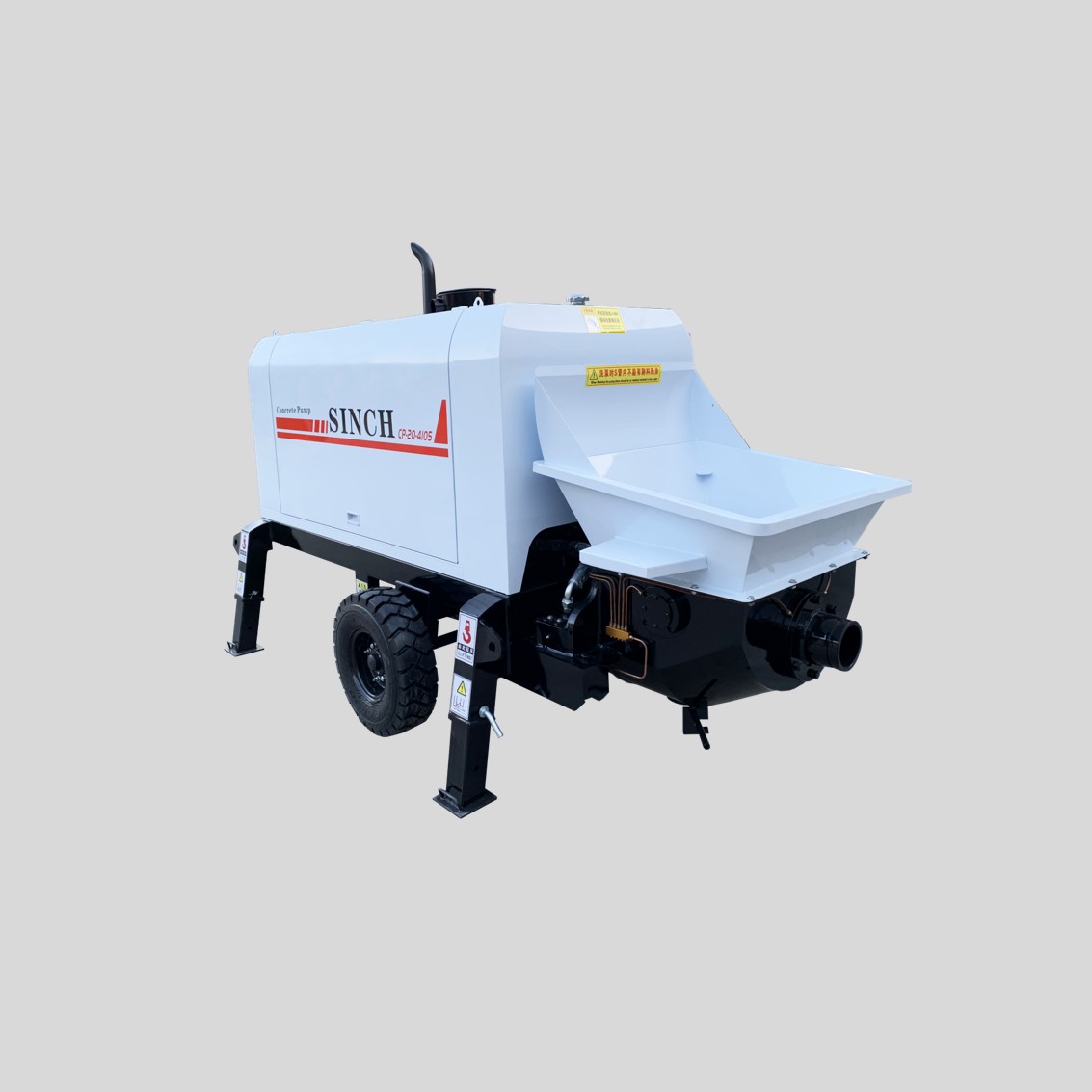

GYP-90 concrete pump
GYP-90 concrete pump

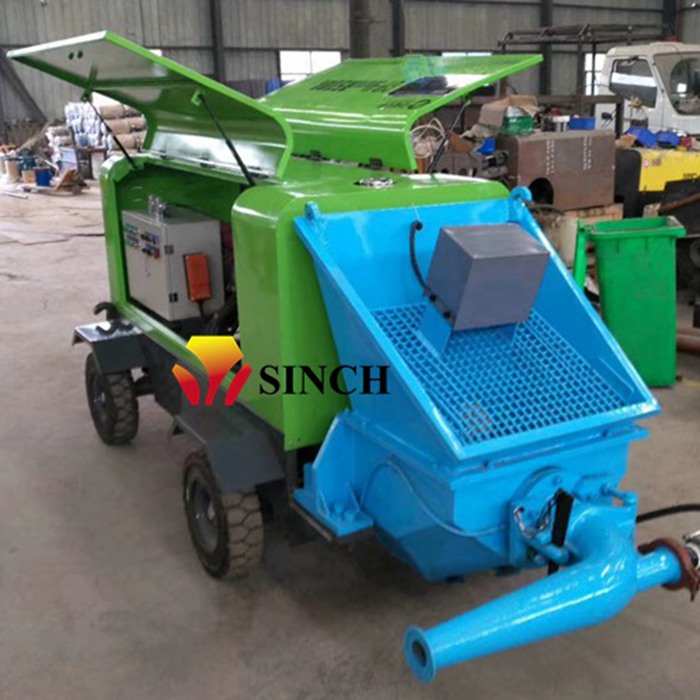

GYP-90 wet shotcrete machine
GYP-90 wet shotcrete machine in factory

Features of GYP-90 wet shotcrete pump:

1. Hydraulic pump type convey,can be used for shotcrete,filling,grouting and convey work.

2. Spray speed adjustable freely from 3 m3/h to 7 m3/h.

3. Accelerator adjustable according to shotcrete spead.

4. Automatic oil lubrication.

Technical Data:

Product nameHydraulic wet shotcrete pump Model No. GYP-90
Max.Horizontal Shotcrete Distance: 100M Power: 22Kw
Max.Vertical Shotcrete Distance: 30M Flow: 3~7m3/h
Max.Horizontal Convey Distance: 120M Hopper Capacity: 300L
Max.Vertical Convey Distance: 60m Suitable Concrete Slump: 12~18cm
Max. Aggregate Size:15mm Shotcrete Hose ID: 57mm rubber hose
Shotcrete air Consumption: 22-25m3/min Conveying Hose ID: 80mm steel pipe
Working Air Pressure:0.4~0.6 MPa Hydraulic oil tank capacity: 145L
Dust beside machine:<6mg/m3 Rebound rate: <10%
Pumping System oil pressure:120bar Distribution system oil pressure: 120bar

Applications:

GYP-90 wet spray machine applications
GYP-90 wet spray machine applications

Structure:

GYP-90 hydraulic wet shotcrete machine consists:

1.Cylinder pushing mechanism

2.Switching cylinder distribution valve mechanism

3. Stirring mechanism

4. Frame

5.Moving mechanism

6. Lubrication system

7. Hydraulic system

8. Electrical system

9. Convey hose
