Dry Shotcrete Machine

Brand Sinch Sinch
Model no PZ-6 PZ-7
Applicable materials Dry concrate Dry concrete
Flow 6m3/h 7m3/h
Pressure 0.2Mpa-0.4Mpa 0.2-0.4Mpa
Power 5.5Kw 7.5Kw
Voltage 380V 380V
Transmission distance 200M 200M
Transmission height 20M 20M
Maximum aggregate size 20mm 20mm
Outlet diameter 51mm 57mm
Weight 600KG   850KG
Dimension 1520*820*1280MM 1600*900*1370MM
Water:ash ≤0.4—0.45 ≤0.4—0.45
Cement:stone 1:3~1:5 1:3~1:5
Loading height 1.1M 1.1M
Air consumption 8-10m3/min 8-10m3/min
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Dry Shotcrete Machine is dry concrete spray machine.It can shoot dry and damp concrete from shotcrete machine onto walls,roofs,slopes,swimming pools,tunnels,culvert,subway,mine,building construction for protection or reinforcement.

Dry concrete sprayer can use electric power or disel power,with air driven.Feed dry mixed concrete(cement+sand+stone) into hopper,through rotor body rubber material cavity then discharge into high pressure convey hose,Shoot onto walls rapidly.

shotcrete machine,gunite machine

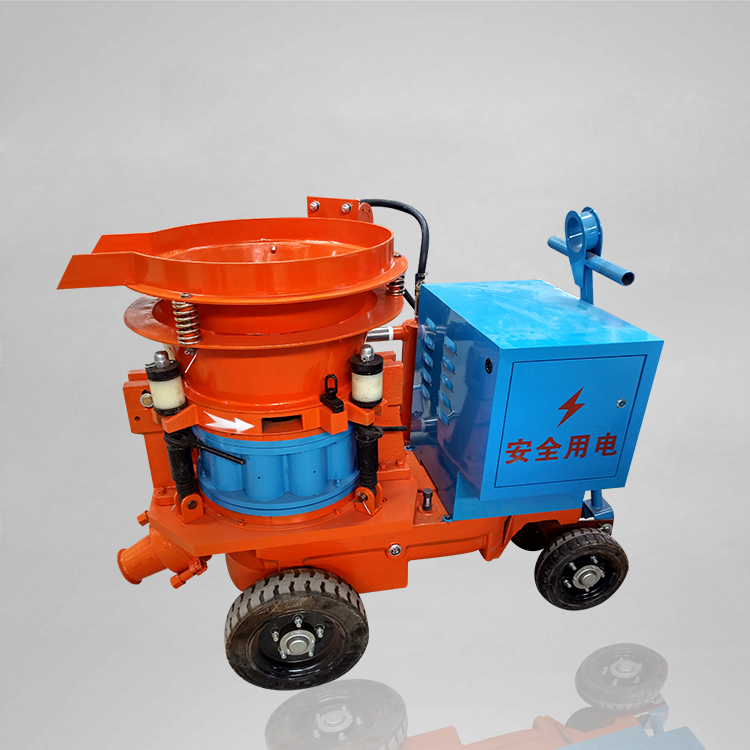

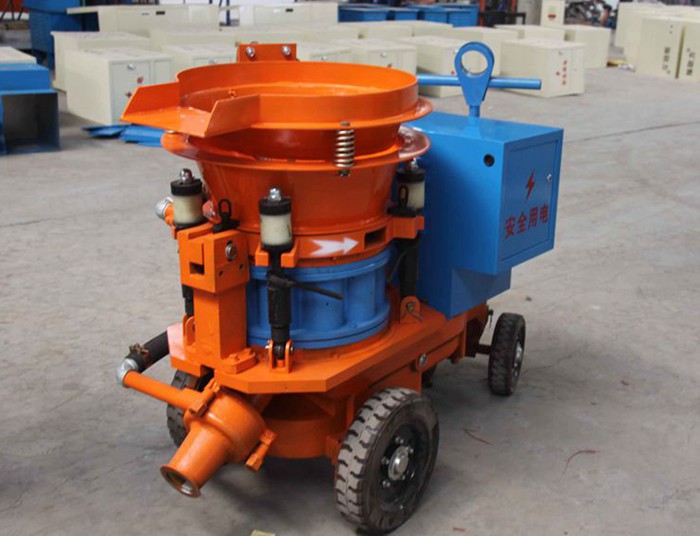

PZ-5 dry shotcrete machine in factory

shotcrete machine,shotcrete sprayer

Back side of PZ-5 dry shotcrete pump

dry shotcrete machine,concrete sprayer

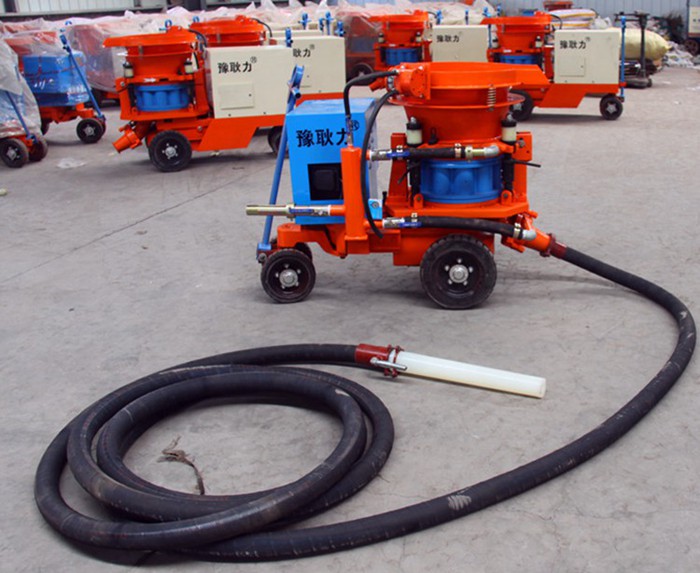

Nozzle,nozzle seat,hose connected to PZ-5 dry shocrete machine

The main difference of dry concrete spraying work and wet concrete spraying work is dry type will produce more dust then wet type. In tunnel or other confined space,better use wet shotcrete machine.To reduce the air polution.

But dry shotcrete machine is small ,easy to move and very cheap,so PZ-5 dry concrete spray machine is always most sold.

shotcrete machine

Shotcrete wearing parts

Sand and stone will wear and tear the rubber plate, elbow ,material cavity seriously during shotcrete work. So all the rubber parts need to be replaced time to time.According to your spray working time and material size.

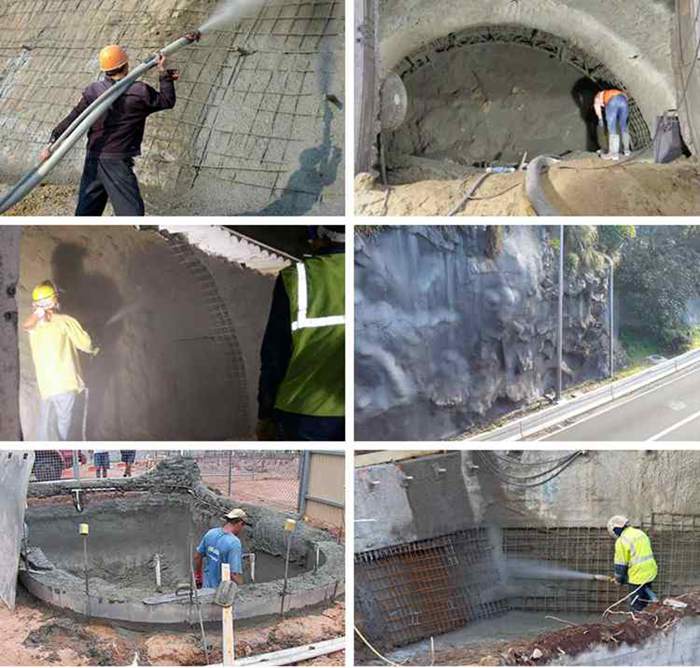

Application:

shotcrete machine,shotcrete pump

Various concrete spraying work

Features of dry concrete sprayer:

1.No blocking,easy to move.

2.Low cost.

3.Easy to use

Technical Data of dry shotcrete pump:

Brand Sinch Sinch
Model no PZ-6 PZ-7
Applicable materials Dry concrate Dry concrete
Flow 6m3/h 7m3/h
Pressure 0.2Mpa-0.4Mpa 0.2-0.4Mpa
Power 5.5Kw 7.5Kw
Voltage 380V 380V
Transmission distance 200M 200M
Transmission height 20M 20M
Maximum aggregate size 20mm 20mm
Outlet diameter 51mm 57mm
Weight 600KG   850KG
Dimension 1520*820*1280MM 1600*900*1370MM
Water:ash ≤0.4—0.45 ≤0.4—0.45
Cement:stone 1:3~1:5 1:3~1:5
Loading height 1.1M 1.1M
Air consumption 8-10m3/min 8-10m3/min

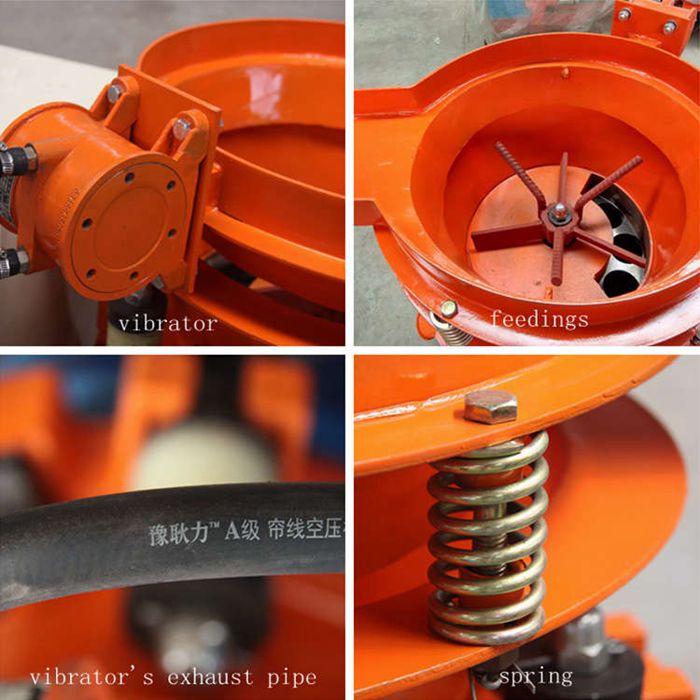

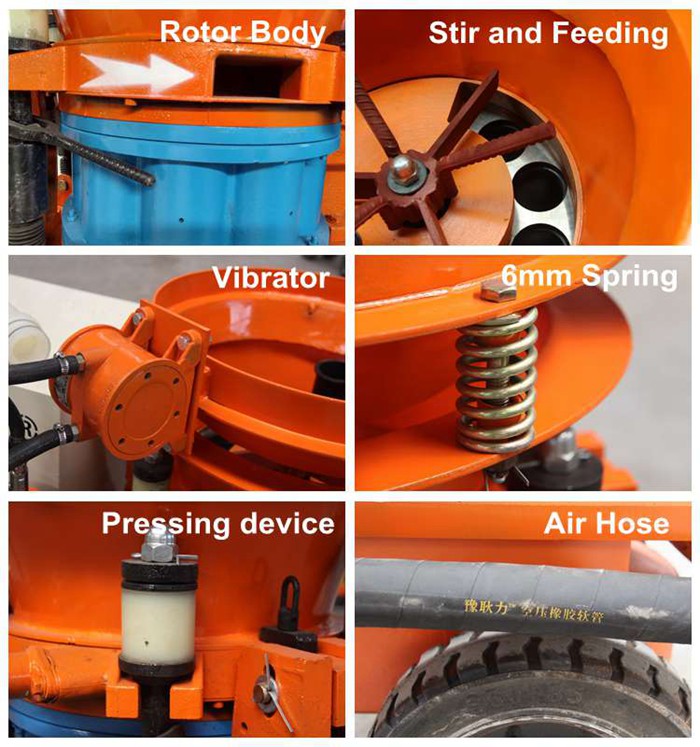

Details:

dry shotcrete machine

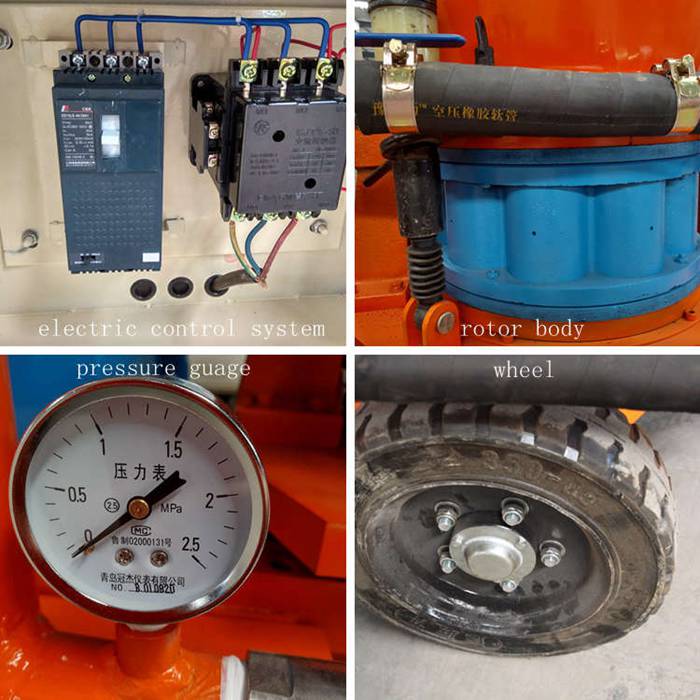

Details of dry shotcrete machine

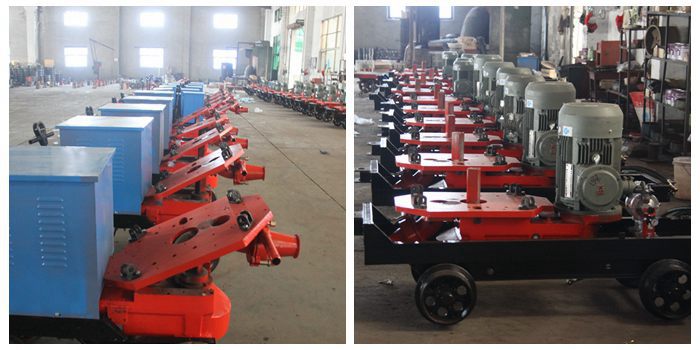

Production:

concrete spray pump.shocrete machine

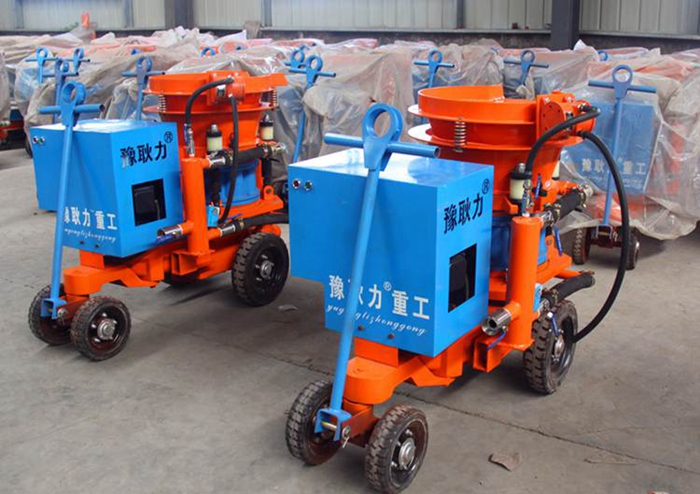

Production of dry shotcrete machine in factory

Spare parts:

shotcrete pump,concrete sprayer

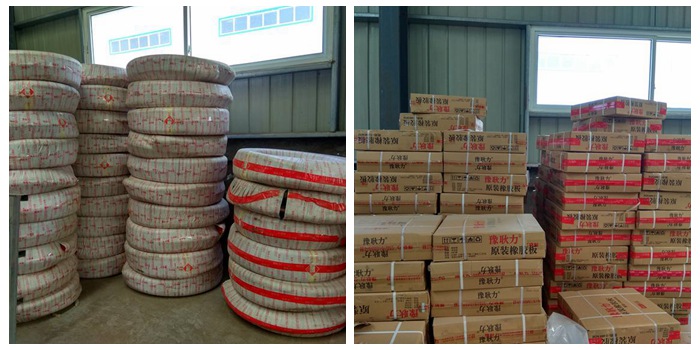

Hose and Rubber plate in factory

concrete shocrete machine, shotcrete pump

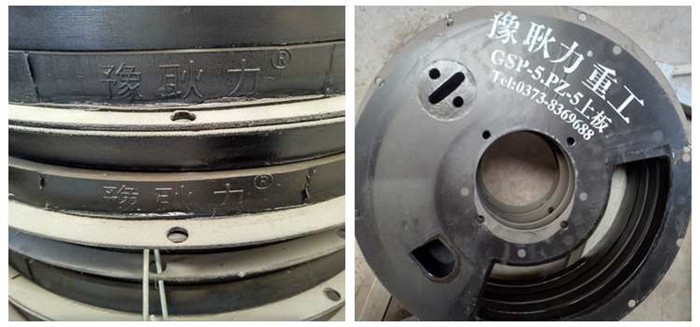

Rubber plate sealed with our brand name

shotcrete pump,concrete spray pump

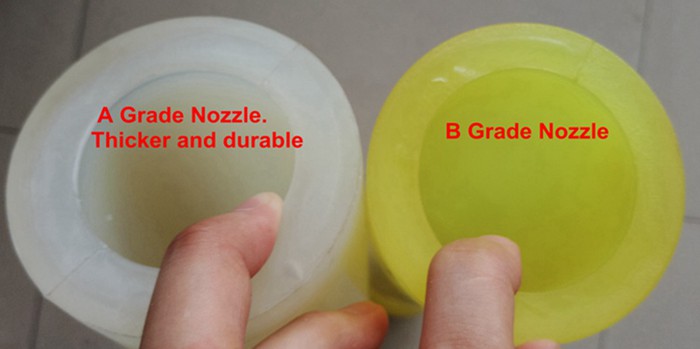

Shotcrete nozzle thicker than normal nozzle

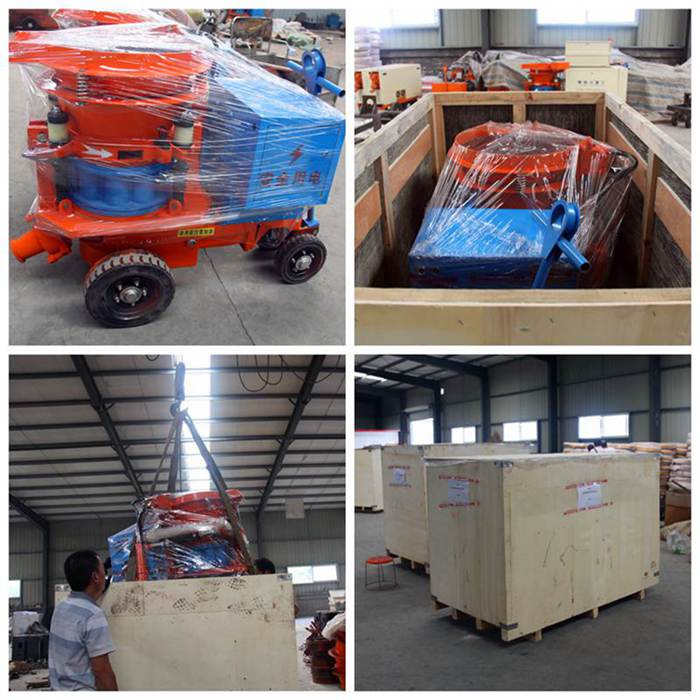

Packing:

shotcrete machine,dry shotcrete machine

PZ-5 dry shotcrete machine export to Malaysia

Terms and delivery:

1.Lead time:3-7 days after payment, bulk order check with Monica.

2.Price term:EXW,FOB,CFR,CIF.

3.Payment term:T/T, irrevocable L/C at sight,Trade assurance.

4.Delivery:Normally by sea. Air and express also workable.

5.Packing:Wooden case+Shipping mark.

6.Warranty:12 months without wearing parts.
