Concrete Ditch Paving Machine

Model No Customize
Move type Traction/Automatic
Power 24/30KW options
Engine Diesel Gasoline
Hydraulic pressure 20Mpa
Hydraulic tank 120L
Hydraulic pump 5.5Kw
Vibrator power 2.2kw
Feeding power 1.5Kw
Working speed 300-500m/day
Workers need 4-5 person
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Concrete ditch paving machine including: digging bucket,hydraulic system,diesel engine system and the main machine-concrete paving system.

The ditch wide from 30CM to 6M all workable . Ditch depth from 15cm to 2m all workable.

Working method:

Using diesel engine to start the motor,motor drives the hydraulic pump ,hydraulic cylinder in the machine can move forward and backward to press and squeeze the concrete into molds.In the mean time , the back force will make the machine move forward. Walking along with the channel put at 2 sides.

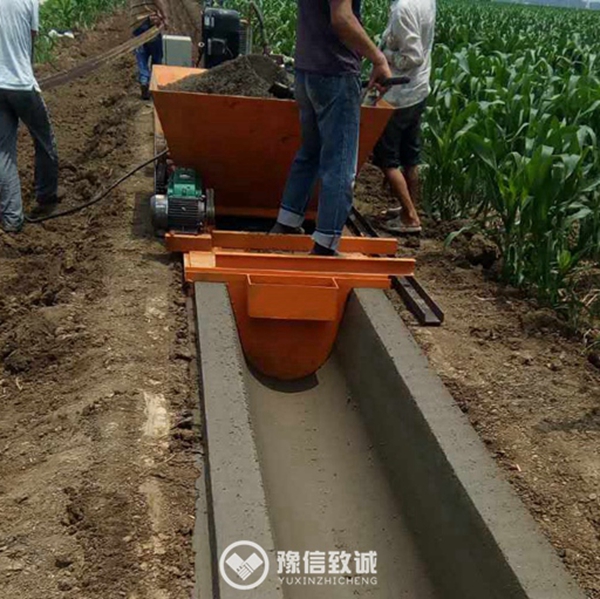

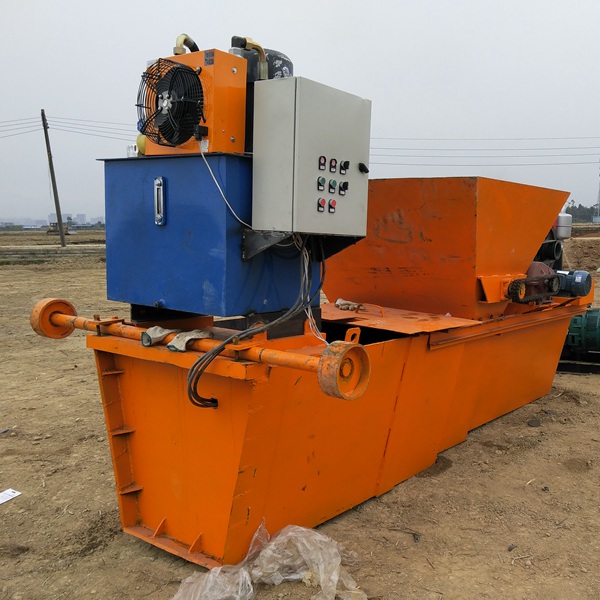

Concrete ditch paving machine
Concrete ditch paving machine

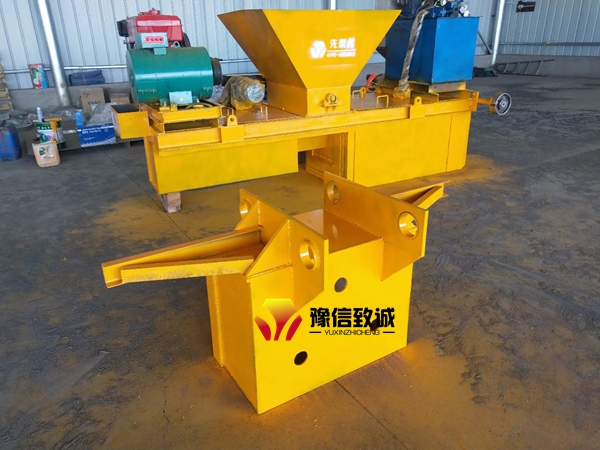

Ditch paving machine

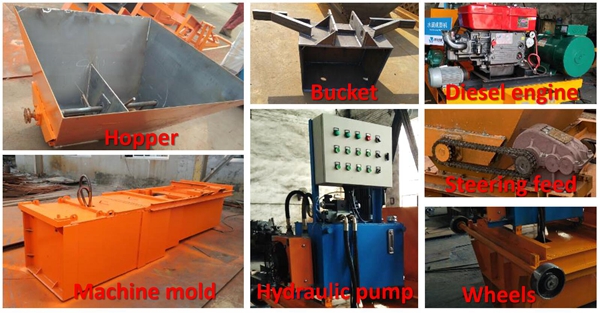

Ditch paving machine structure

Woking process:

  1. Lavel the ground
  2. Put straight line
  3. Excavation
  4. Put ditch paving machine into the ditch
  5. Concrete feeding and forming
  6. Polishing
  7. Cutting concrete gap
  8. Maintaine work

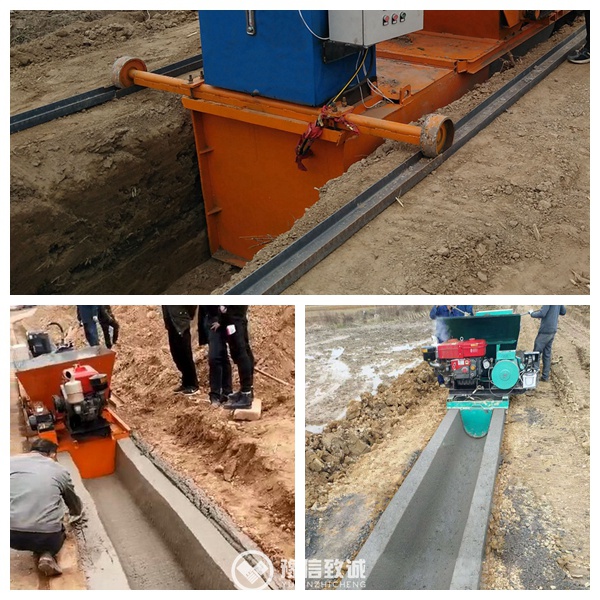

Concrete ditch lining machine

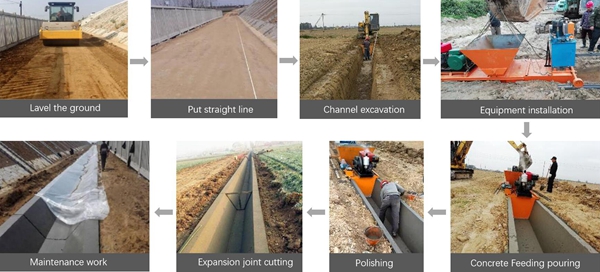

Ditch paving process

Advantages Of Automatic Water Canal Making Machine:

1. The anti-seepage effect is good, generally it can reduce the leakage loss by 90%~95%.

2. Good durability. Under normal use, cast-in-place concrete lining channels can operate for more than 50 years.

3. The roughness is small, n=0.014~0.017, which can reduce the head loss along the path; the flow rate is allowed to be large, and the cement ditch once forming machine is generally 3~5m3/s; when the slope is steep, the connection building can be saved and the channel can be narrowed. Section, reducing the amount of earthwork and floor space.

4. High intensity and easy to manage. Due to the high strength of the concrete lining, it can effectively prevent the damage of animals and plants or other external forces; prevent the siltation of the channels caused by soil erosion during the flood season; prevent the freezing and thawing of the channels, facilitate the maintenance management and save management costs.

5. There are few lining joints and the construction cost is low. There are few seams in the cast-in-place channel, the amount of concrete works is small, and the investment is saved.

6. Strong plasticity and wide adaptability. For different channels and different earthworks, the thickness of cast-in-place can be changed, cement ditch forming equipment can also be added to connect steel bars to enhance the integrity and stability.

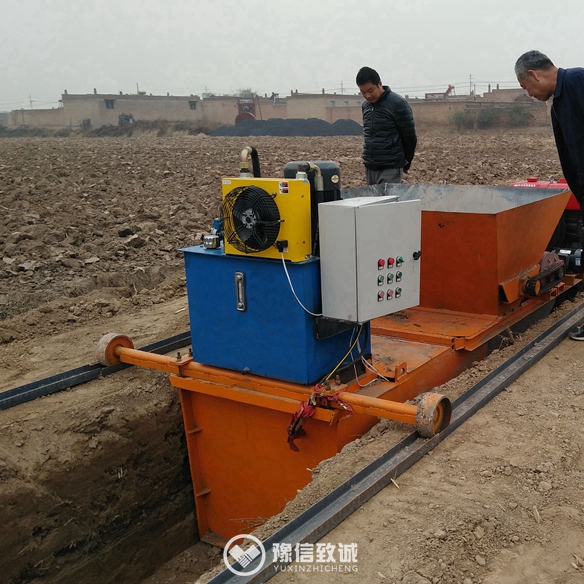

Slipform Paving Machine

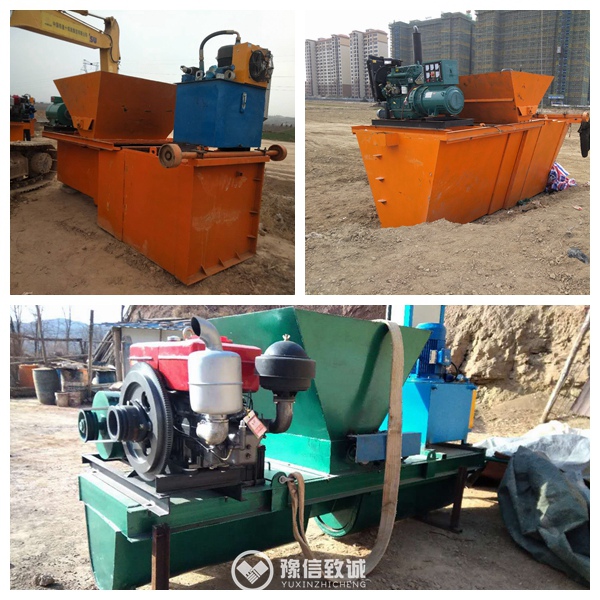

Dich and canal paving effect

The machine has few operators and high production capacity, and the pouring channel is more than 400 meters per day, which is very suitable for the construction of the Canal with large engineering volume.

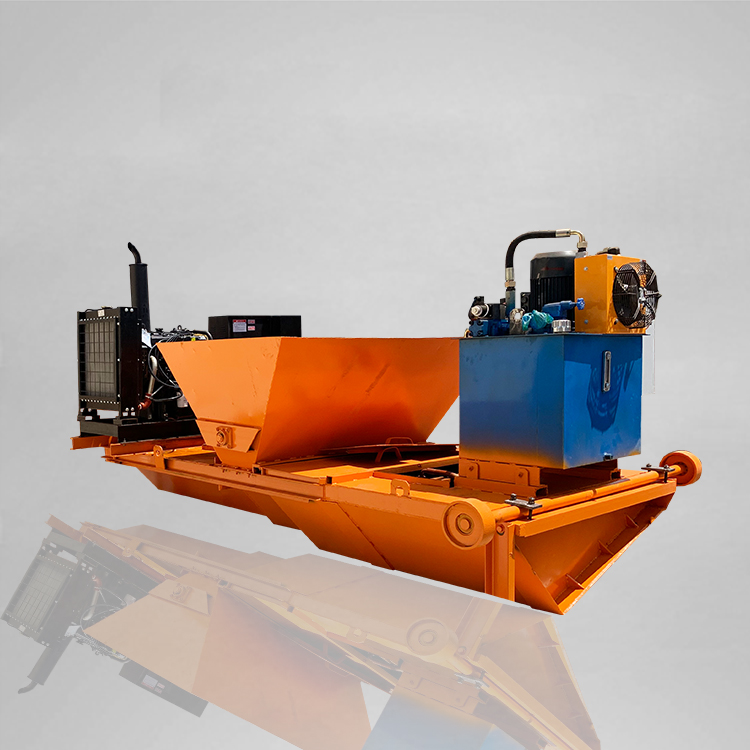

ditch paver

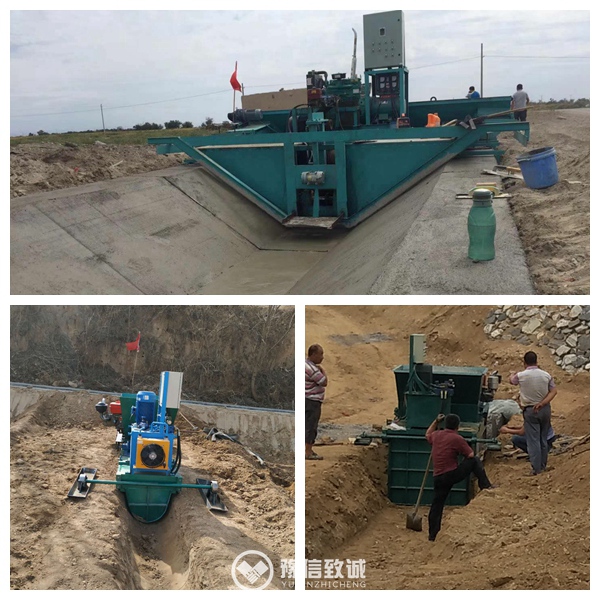

Various working site of ditch paving lining work
concrete paver for canal lining
concrete paver for canal lining
