Asphalt Curb Machine-LSD-250/LSD-350

Model No.

LSD-250

LSD-350

Power

Diesel 15HP

Diesel 15HP

Suitable material

Aspalt or concrete

Aspalt or concrete

Max curb size

250*250mm

350*350mm

Min curb size

12*10cm

12*10cm

Working speed

2-3m/min

3-5m/min

Hopper volume

0.2CBM

0.2CBM

Weight

450KG

560KG

Dimension

1.7*1.1*1.2m

1.8*1.1*1.2m

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

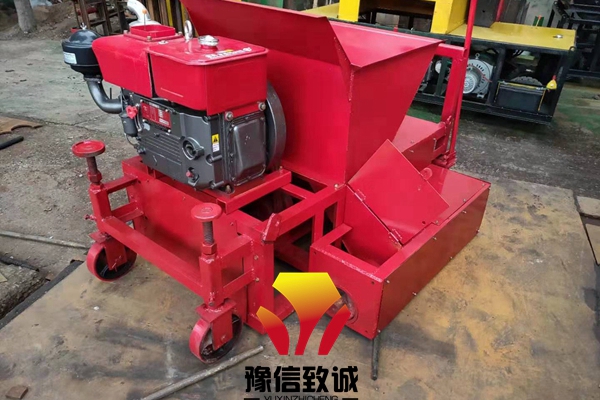

Asphalt Curb paving machine is a portable extruding type curb maker.It is small and compact,easy to use.Extruding asphalt concrete into in high density curbs.Low wear and tear,only replace 1 auger blade is ok. 1200~1500 meters per 8 hours.

We have 2 models of Asphalt curb maker:LSD-250 and LSD-350.

LSD-250 VS LSD-350:

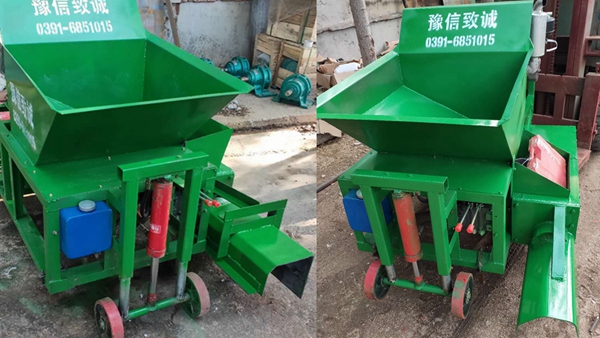

  • Adjusting way:LSD-250 can adjust the machine height by 4 hand wheels. LSD-350 can adjust the machine up and down by 2 hydraulic handles.
  • Max curb size: 250MM and 350MM.

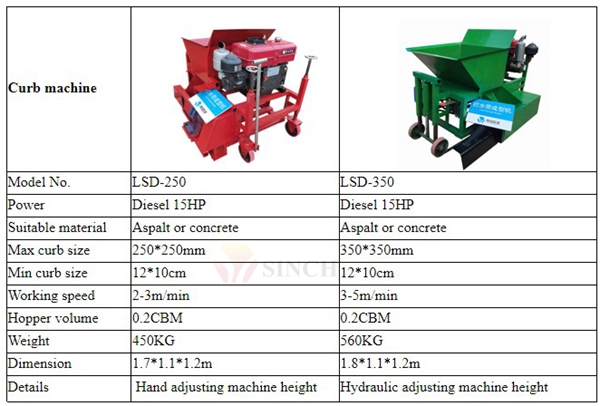

Asphalt curb machinespecifications
curb machine specifications
asphalt curb machine
Road curb machine
Asphalt kerb machine
kerb machine

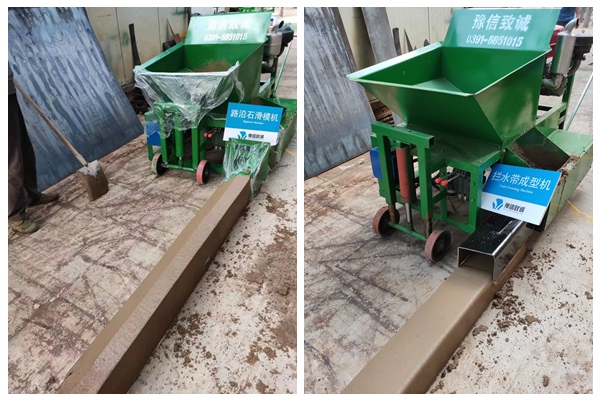

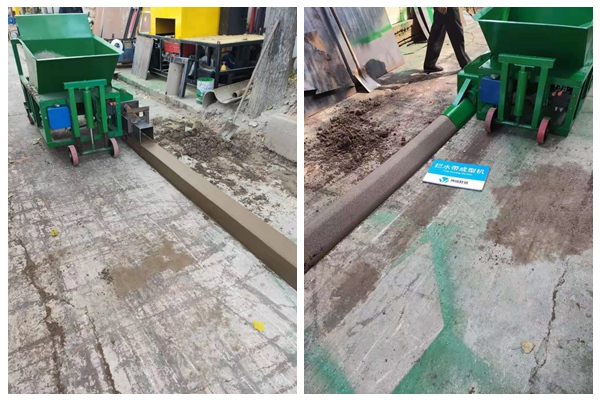

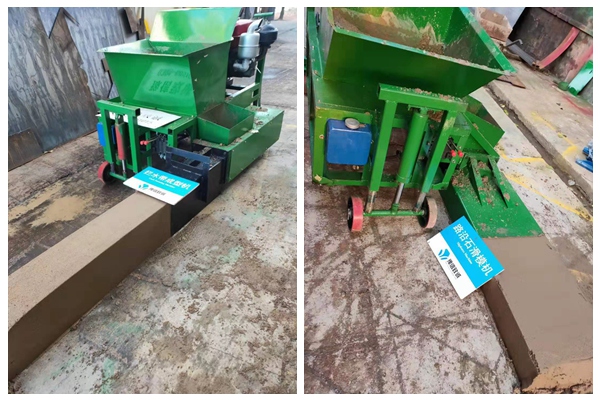

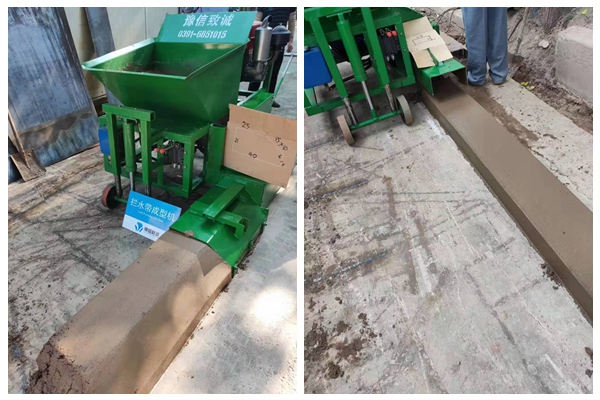

Various curbs show:

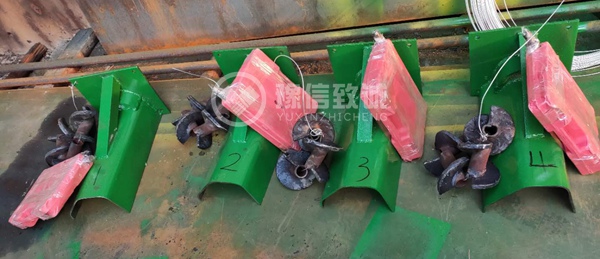

Curb molds can be customized according to your drawings. Molds can be removed and replaced easily by screws.Each mold will be tested before delivery.As below pictures:

Asphalt curb maker
curb maker
Asphalt Kerb stone making machine
Kerb stone making machine
Asphalt Curb extruder
Curb extruder
Asphalt Curb stone paving machine
Curb stone paving machine

Wearing parts of road curb maker:

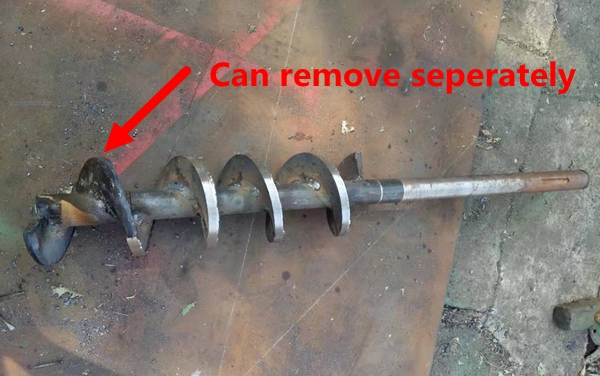

The main wearing part of extruding type asphalt curb machine is the auger blades.

There are 4 blades on the shaft, when the 1st blade wore out, you can remove it from shaft, then replace a new one to protect shaft free of wore.

curb machine blades
curb machine blades

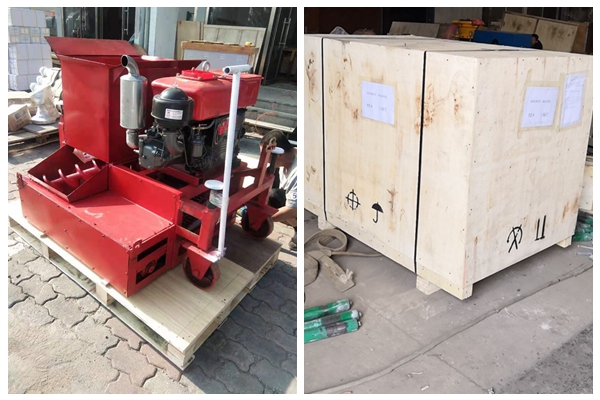

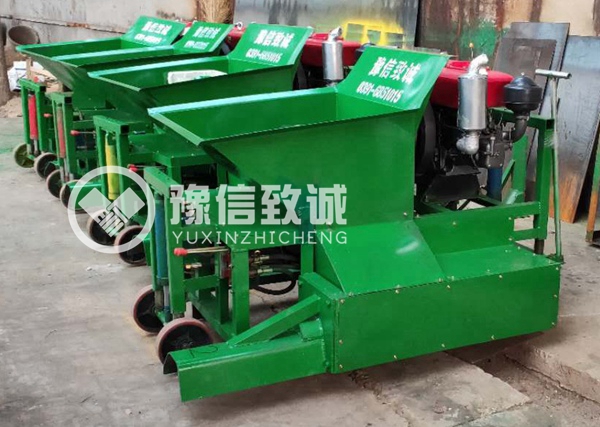

Delivery of curb extruders:

Plastic film+export plywood case packing.

Curb machine export to Iraq

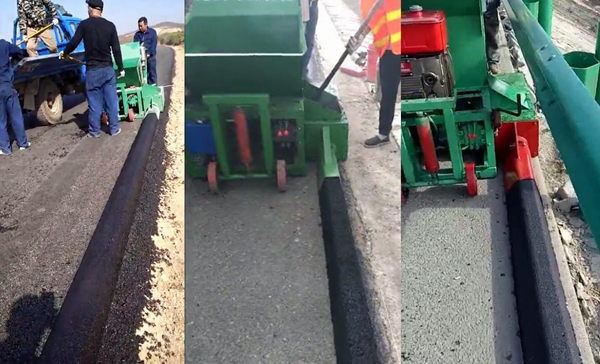

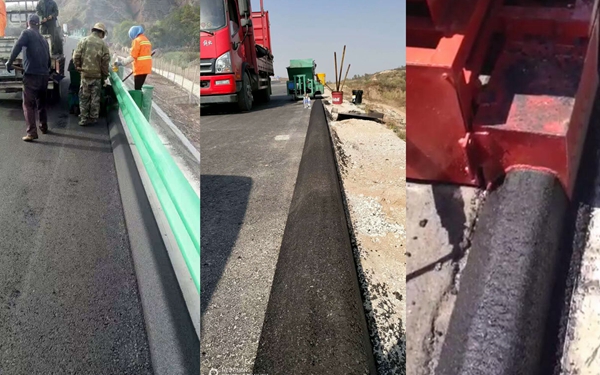

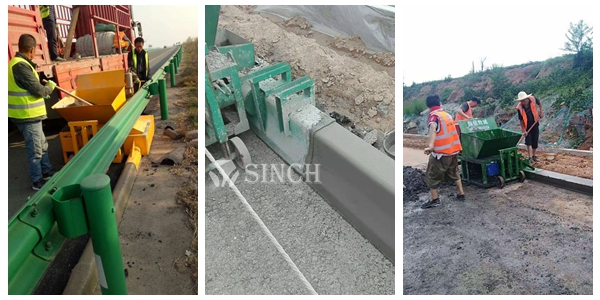

Asphalt curb paver working site show:

  • Special machine for asphalt curb paving.
  • Can make both asphalt and concrete.
  • Only need 2 workers .
Asphalt Curb working video
asphalt working site
Asphalt curb working site
Asphalt working site
Asphalt curb working site
Concrete curbs working site
Concrete curbs working site

Working steps of extruding curb machine:

  1. Add diesel and water to the diesel engine. (The machine has been oiled before leaving the factory)
  2. Move the machine to the construction location.
  3. Start the diesel engine with a rocker.
  4. Adjust the hydraulic handle so that the bottom of the mold of the machine fits the ground. Make the front of the machine 1 cm higher than the rear.
  5. A worker uses a drawbar to control the direction of travel of the machine in front.
  6. Continuously put the mixed concrete material (or the heated asphalt sand material) into the feeding hopper.
    Note: Before putting in the tar sand, it is necessary to spray the separator on the screw shaft and the blade (diluted by diesel engine + water) to prevent the asphalt material from sticking to the shaft and the blade, affecting the discharge and walking.
  7. Cleaning with the machine: Check the finished product in time to meet the engineering requirements, and timely clean up the spilled material during the feeding process. When encountering the rapids, partially shovel the water inlet.

Curb machine Introduction:

Curb machine mainly divided into 2 types according to is working principle, Extruding type curb making machine and slipform curb paving machine.

Extruding type is working by 4 auger blades.Slipform type is working by 1 or 2 vibrators.

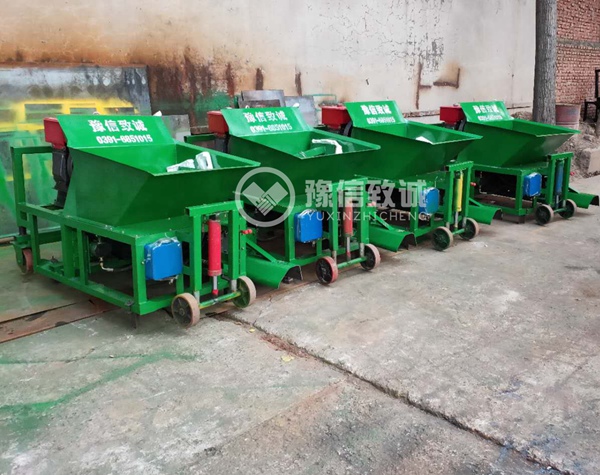

Extruding curb machine: LSD-250/LSD-350

Extruding type curb machine
Extruding type curb machine

Slipform curb machine-HMJ-600/HMJ-1000/HMJ-2000

Slipform curb machine

Differences of extruding curb maker and slipform curb paver:

Extruding kerb machine max size: 350mm width,350mm height.

Slipform kerb machine max size: 1500mm width,500mm height.

Extruding type curb paver have to use thicker concrete.

Slipform type curb paver normally use thin concrete,concrete tanker can feed directly.Save man power.
